Water Pump Impeller Kit 0763758 for Johnson Evinrude 5.5 6 7.5 HP Outboard with Housing Cup 0391391 — Australia Local Warehouse
Water Pump Impeller Kit 0763758 for Johnson Evinrude 5.5 6 7.5 HP Outboard with Housing Cup 0391391 — Australia Local Warehouse
Product Overview
Water pump kit, a complete repair part for the 5.5 HP, 6 HP and 7.5 HP Johnson and Evinrude two-strokes built from 1954 to 1979, supplied as 8 components with a net weight of 220 g. It replaces 0763758, 0391391 and 382797, and it contains the impeller 0387361, the plastic housing 0323596, the cup 0324641, the plate 0323597, the grommet, the drive key and 4 bolts. Held in our Australia local warehouse.
These are the small twins that have been on Australian rivers and impoundments for decades, and most of them are still earning their keep at trolling speed. A pump that has lost volume at idle is exactly the failure that hurts them, because a long slow day on an old two-stroke gives the motor no chance to cool down at speed.
Fitting the kit rather than the impeller alone is the whole point on this pump. The plastic housing wears into a groove that a new impeller cannot seal against, and the stainless cup underneath polishes through, so a fresh impeller in a worn housing delivers less water than the old worn impeller did when it was new.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller repair kit |
| Engine Type | Johnson and Evinrude two-stroke outboards |
| Horsepower | 5.5 HP, 6 HP, 7.5 HP |
| Years | 1954-1979 |
| Housing Material | Plastic |
| Impeller Blades | 6 |
| Components | 8 items, see list below |
| Net Weight | 220 g |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson Evinrude kit | 0763758, 763758 |
| Johnson Evinrude kit | 0391391, 391391 |
| Johnson Evinrude kit | 382797, 0382797 |
| Johnson Evinrude kit | 0379771, 0389228, 0778166 |
| Impeller | 0387361, 387361, 0763735 |

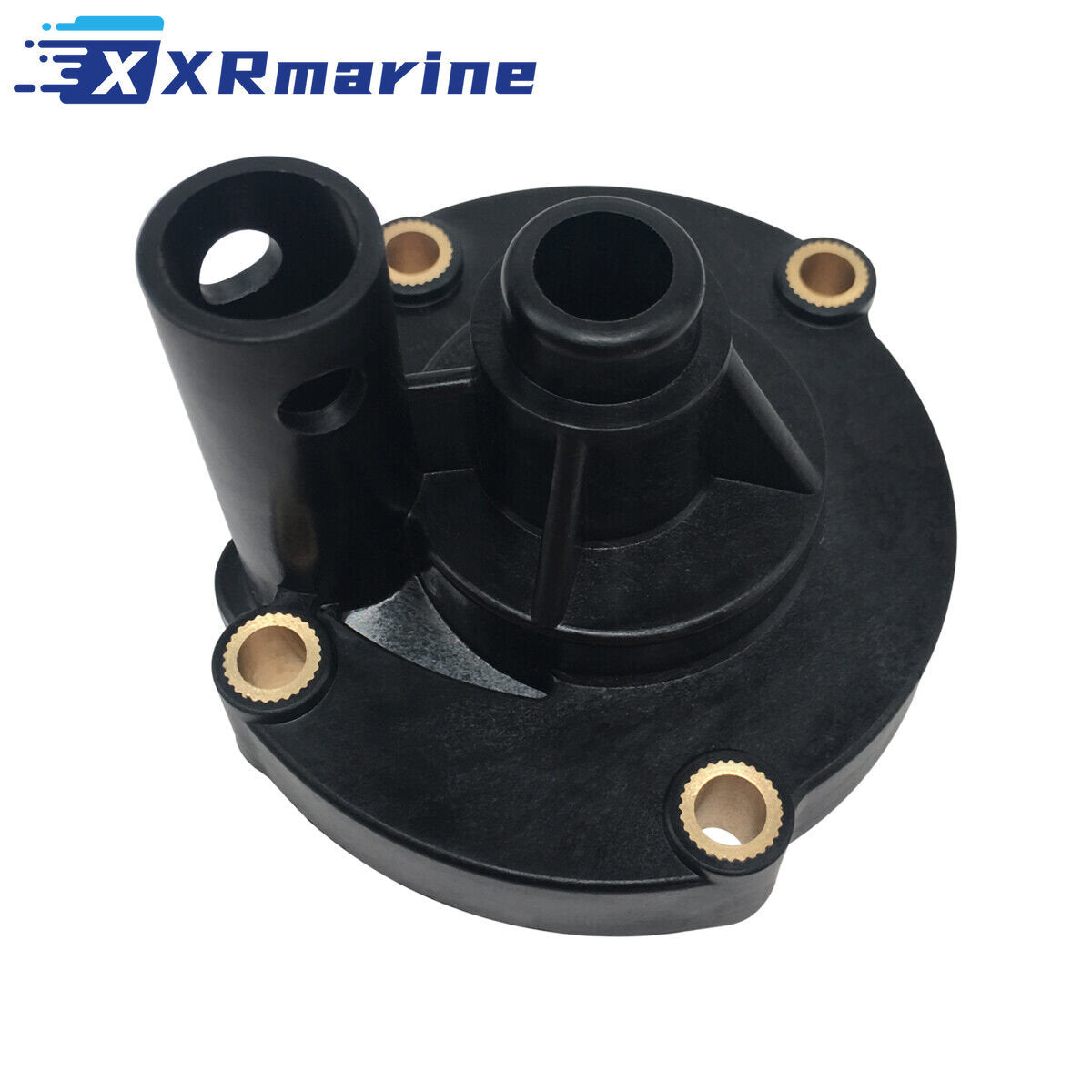

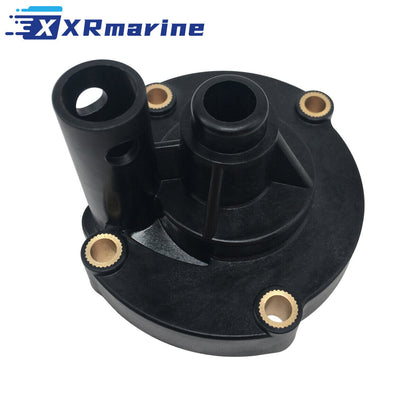

| Impeller housing | 0323596, 323596 |
| Water pump cup | 0324641, 324641 |
| Impeller plate | 0323597, 323597 |

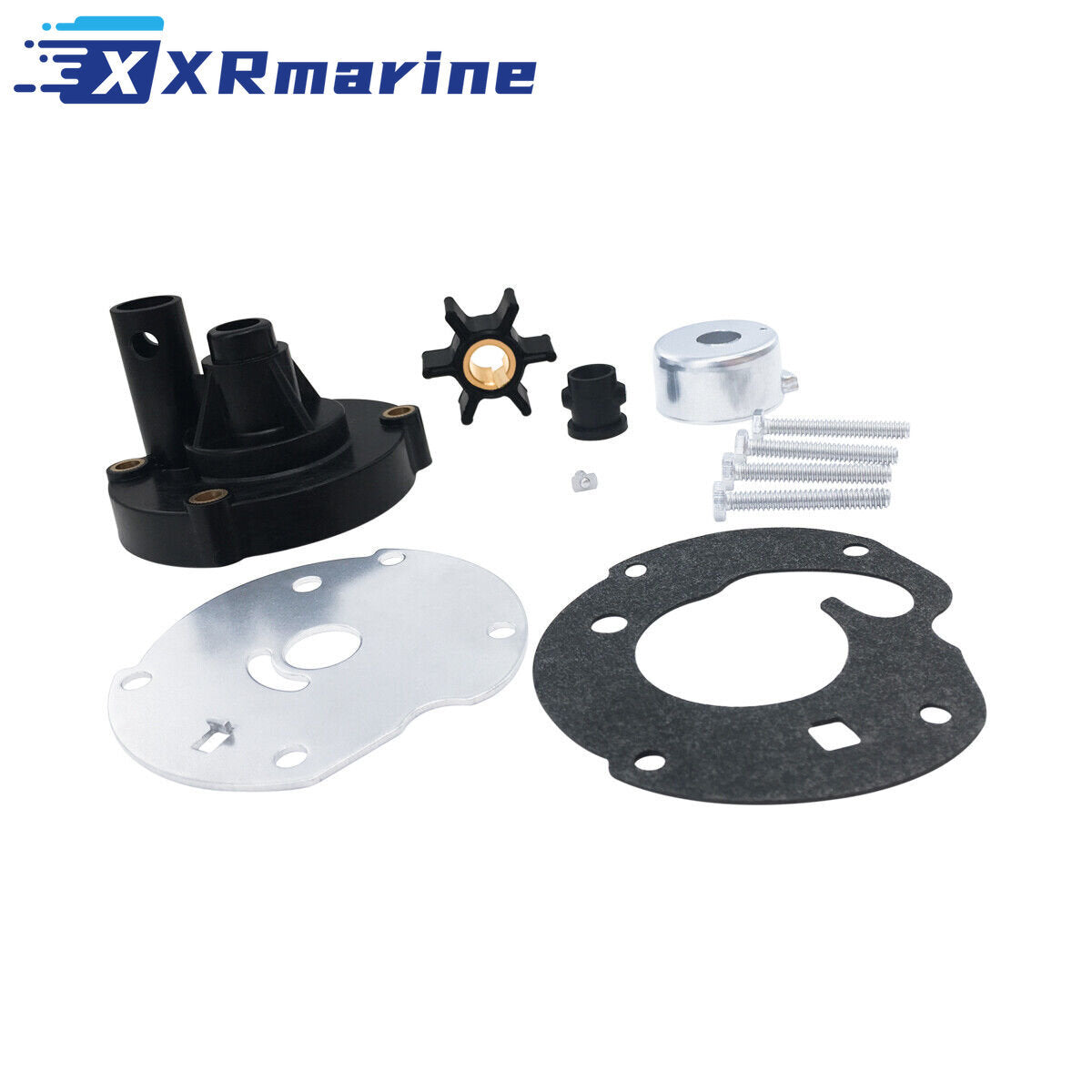

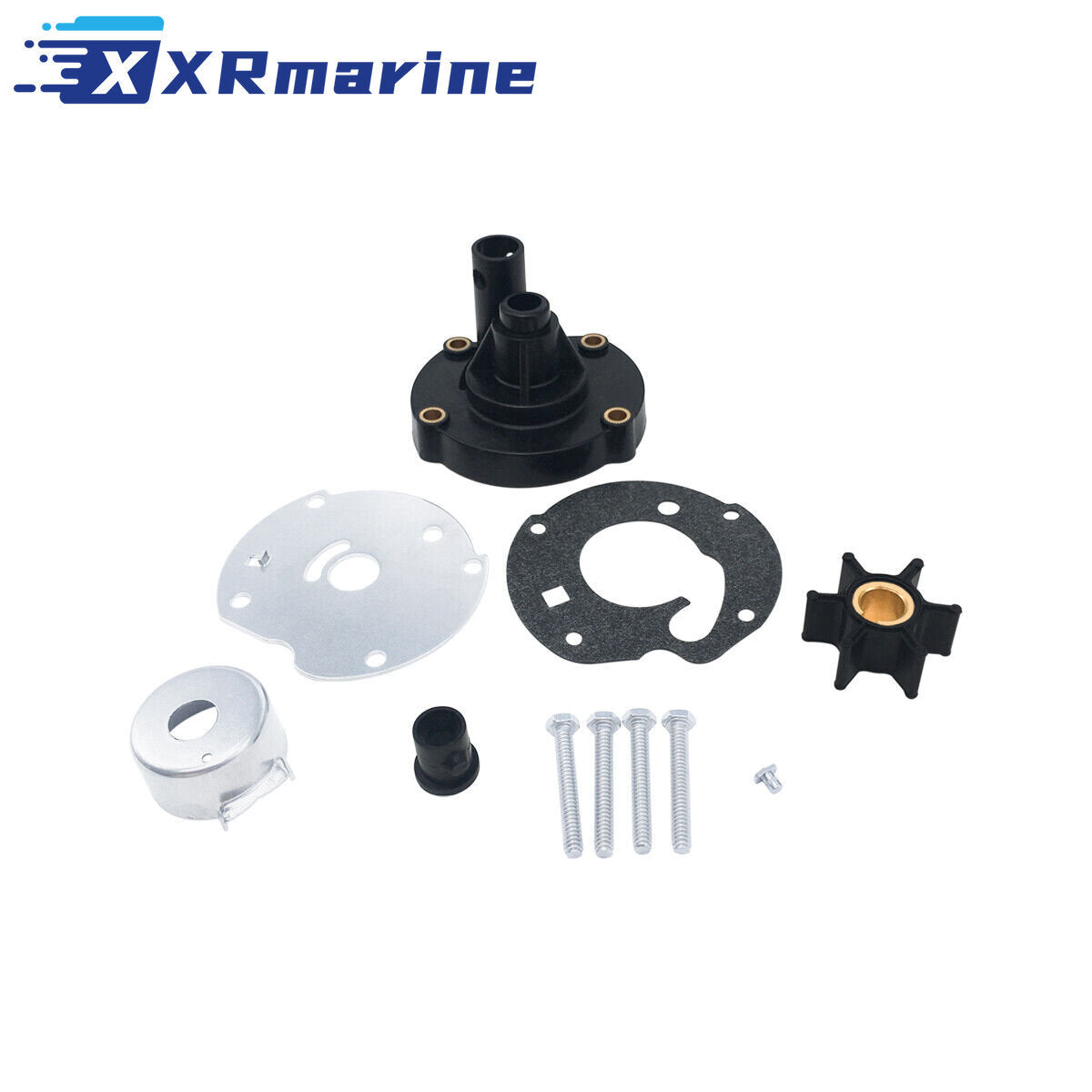

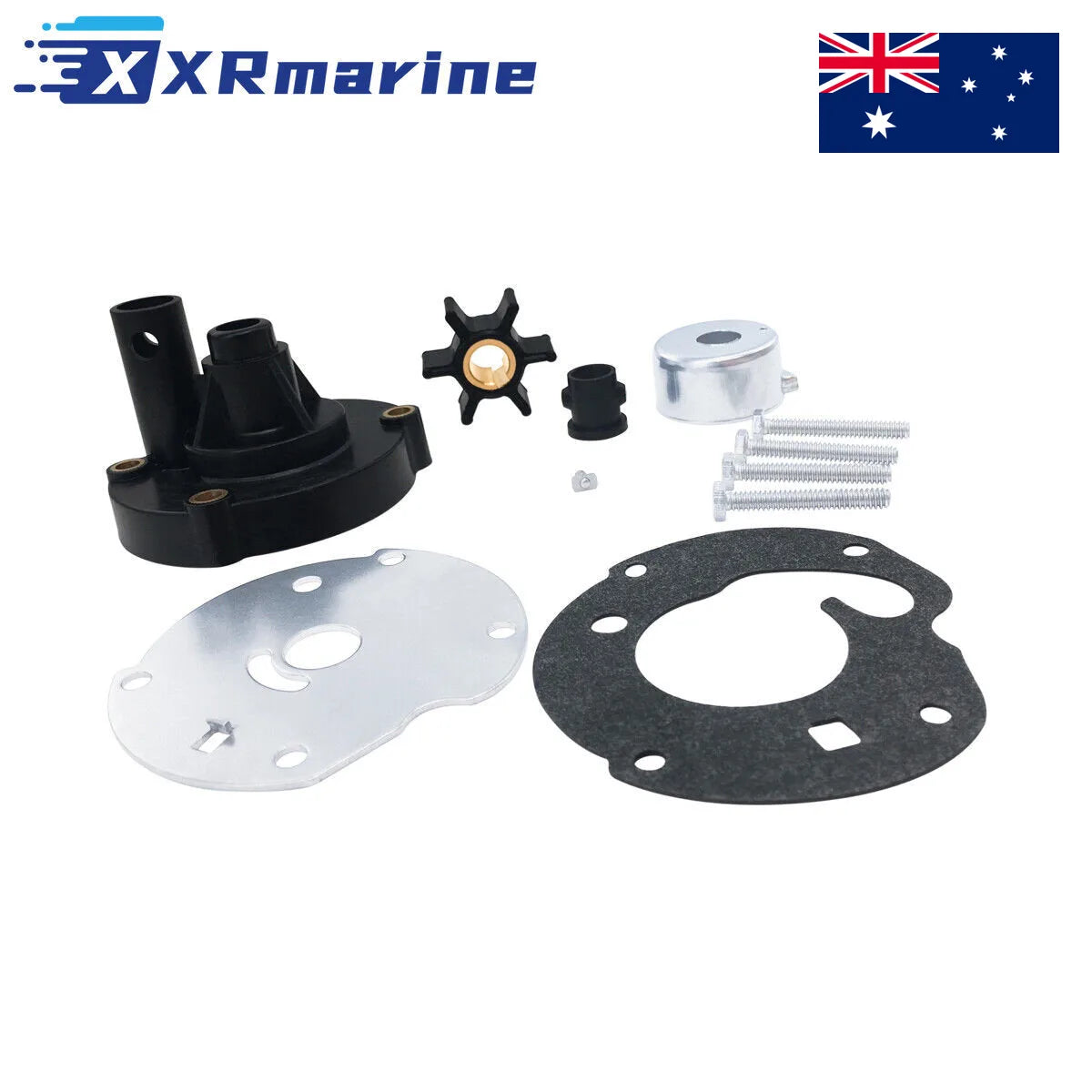

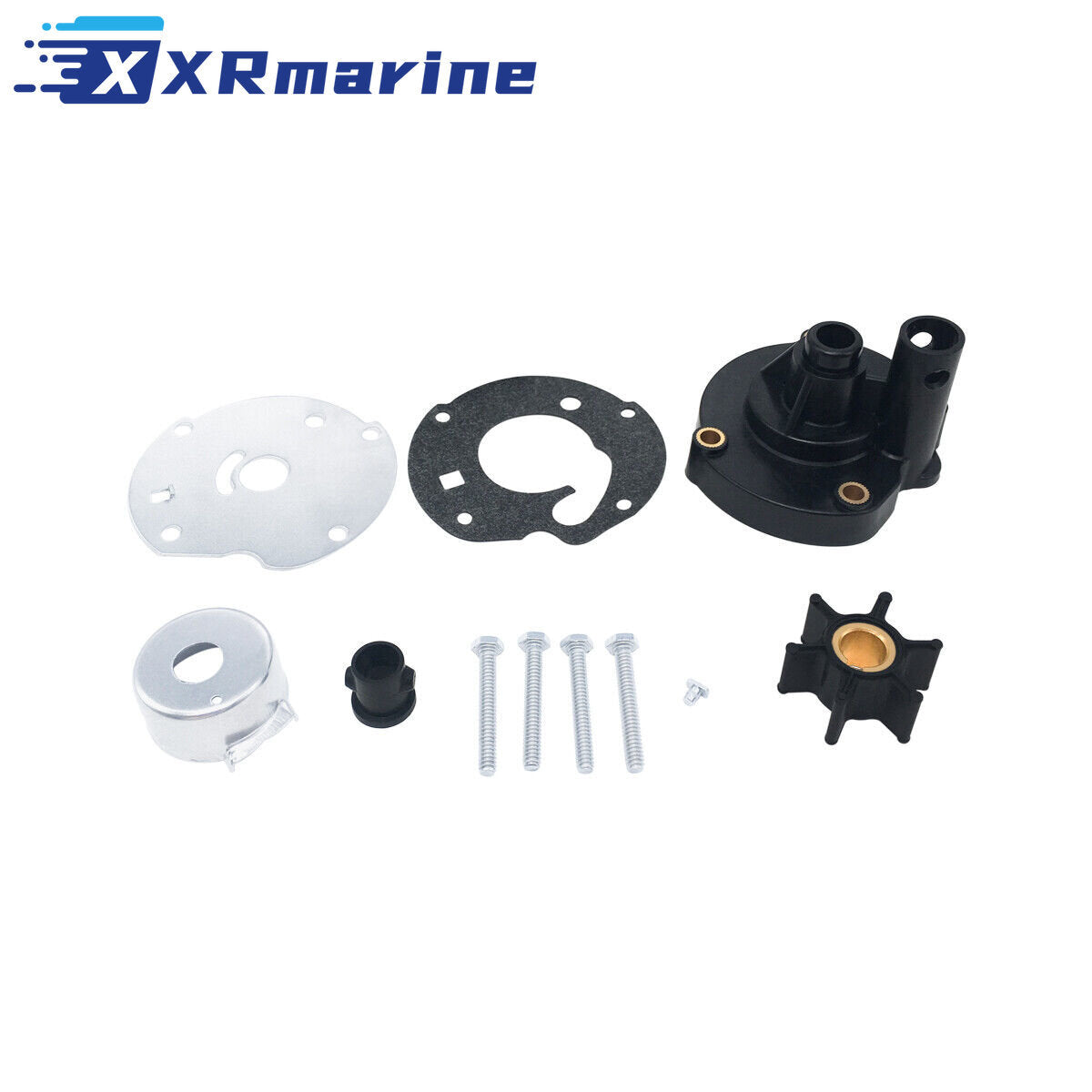

Assembly Components
| Component | Qty | Part Number |
|---|---|---|

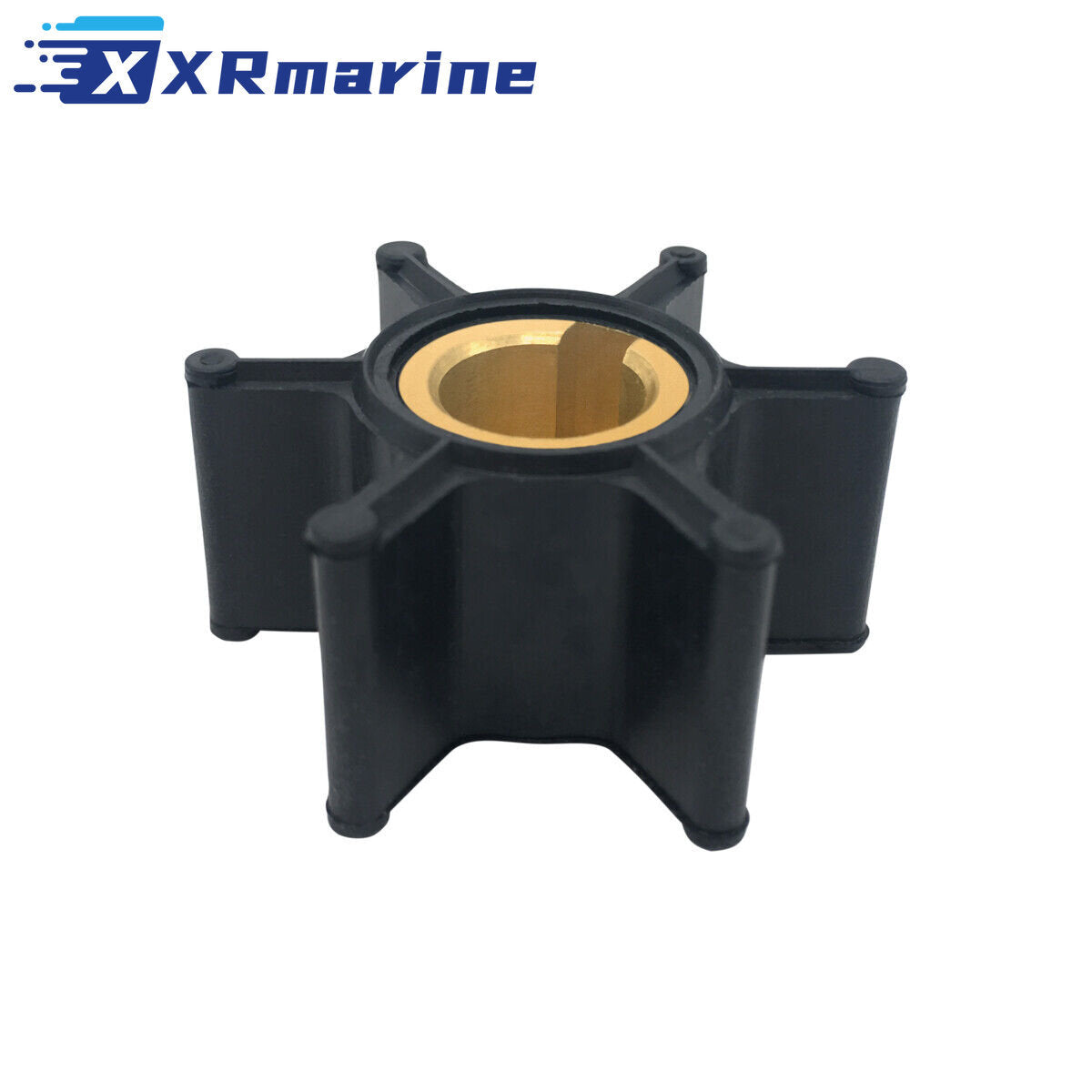

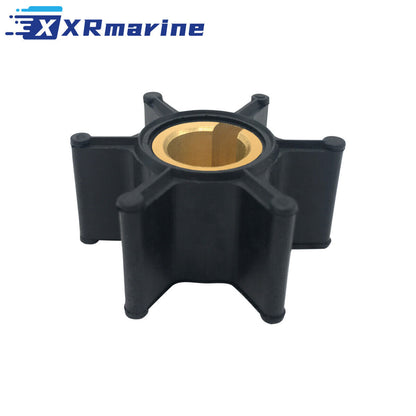

| Impeller, 6 blade | 1 | 0387361 |
| Impeller housing, plastic | 1 | 0323596 |
| Water pump cup | 1 | 0324641 |
| Impeller housing plate | 1 | 0323597 |
| Water tube grommet | 1 | Not published |
| Drive key | 1 | Not published |
| Housing gasket | 1 | Not published |
| Bolt | 4 | Not published |
Compatible Engines
| Horsepower | Years | Model Numbers |
|---|---|---|
| 5.5 HP | 1954-1979 | Models with the plastic pump housing |
| 6 HP | 1966-1979 | 6504R, 6505R, 6R75R, 6RL75R |
| 6 HP | 1976 | 6604A, 6605A, 6R76A, 6RL76A |
| 6 HP | 1977 | 6704M, 6705M, 6R77M, 6RL77M |
| 6 HP | 1978 | 6804B, 6805B, 6R78B, 6RL78B |
| 6 HP | 1979 | 6904E, 6905E, 6R79E, 6RL79E |
| 7.5 HP | 1954-1979 | Models with the plastic pump housing |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller | 1 |
| Impeller housing | 1 |
| Water pump cup | 1 |
| Impeller housing plate | 1 |
| Water tube grommet | 1 |
| Drive key | 1 |
| Housing gasket | 1 |
| Bolt | 4 |
Why the Whole Kit
| Condition Found | Impeller Only | Full Kit |
|---|---|---|
| Housing grooved by the blades | New blades cannot seal, flow stays low | New housing restores the clearance |
| Cup polished through | Blades rub the metal, wear accelerates | New cup gives the blades a clean running face |
| Plate scored | Pressure bleeds past the plate | New plate closes the pump |
| Gasket hardened | Weep at the joint after reassembly | New gasket in the kit |
| Key worn or sheared | Impeller spins on the shaft | New key supplied |
| Bolts corroded | Old bolts snap in the housing | Four new bolts supplied |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the model and serial, this kit suits the 5.5, 6 and 7.5 HP twins with the plastic pump housing |
| 2 | Compare the old impeller at 6 blades and the housing bolt pattern before fitting |
| 3 | Drain the gearcase and note the blade direction as the housing lifts off |
| 4 | Check the driveshaft splines, a dry spline will strip the new impeller key |
| 5 | Clean the pump face and check it is flat before the new plate goes on |
| 6 | Lubricate the impeller with glycerine and turn the shaft clockwise as the housing goes down |
| 7 | Torque the 4 bolts evenly, uneven torque distorts the plastic housing and the pump will not prime |
| 8 | Run on muffs and confirm a strong telltale before the boat goes in the water |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Check the engine model and serial, this kit is for the 5.5, 6 and 7.5 HP twins with the plastic pump housing and does not suit the later metal housings
- Compare the old impeller at 6 blades and the housing bolt pattern before fitting
- Check the driveshaft splines while the pump is off, a dry spline will strip the new impeller key
- Lubricate the impeller with glycerine and turn the shaft clockwise as the housing goes down
- Torque the 4 bolts evenly, uneven torque distorts the plastic housing and the pump will not prime
- This is the complete kit, the gearcase and the water tube are not included
- 30-Day Easy Returns
- Ships from our Australia local warehouse
