Water Pump Impeller Kit 6E0-W0078-A2 for Yamaha Mariner 4 5 6 HP Outboard
Water Pump Impeller Kit 6E0-W0078-A2 for Yamaha Mariner 4 5 6 HP Outboard
Product Overview
Complete water pump kit for Yamaha and Mariner outboards from 4 HP to 6 HP, replacing Yamaha 6E0-W0078-A2, 6E0-W0078-A2-00, 6E0-W0078-02-00, 6E0-W0078-01-00, 68D-W0078-00 and 68D-WG078-00, and Mercury Mariner 47-96305M, 46-810952M, 46-810953M and 46-810954M, with Sierra 18-3073 as the cross reference.
This is the whole pump, not the rubber alone. The kit carries the housing 6E0-44311-00, the stainless insert cup 6E0-44322-02, the wear plate 6E0-44323-00 and the impeller 6E0-44352-00, so a pump that has been run dry to the point of a scored housing gets rebuilt in one go.
It covers the Yamaha two stroke 4 HP from 1984 to 1999 and 5 HP from 1984 to 2002, the four stroke 4 HP from 2000 to 2005 and the F6, plus the Mariner 4AC on the 6E0 serial, the 4AS on 6E1, the 5C on 6E3 and the 5CS on 6E4.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Complete outboard water pump kit |
| Components | Impeller, housing, insert cup, wear plate, gasket, damper, pin, bolts |
| Fitment | Yamaha and Mariner 4 to 6 HP |
| Country of Origin | Taiwan |
| Shipping Weight | 183 g |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Yamaha kit | 6E0-W0078-A2, 6E0-W0078-A2-00 |
| Yamaha kit | 6E0-W0078-02-00, 6E0-W0078-01-00, 6E0-W0078-02 |
| Yamaha kit | 68D-W0078-00, 68D-WG078-00 |
| Mercury kit | 47-96305M, 46-96305M |
| Mercury kit | 46-810952M, 46-810953M, 46-810954M |
| Sierra | 18-3073 |
Assembly Components
| Component | Yamaha Number | Mercury Number |
|---|---|---|

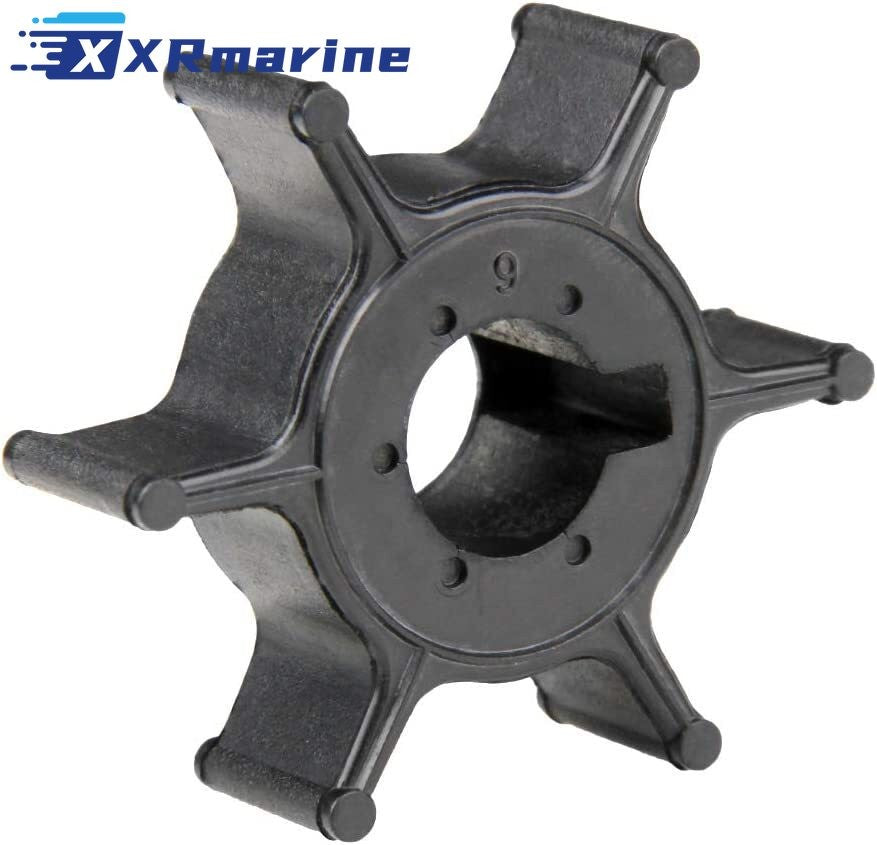

| Water pump impeller | 6E0-44352-00 | 47-96305M |

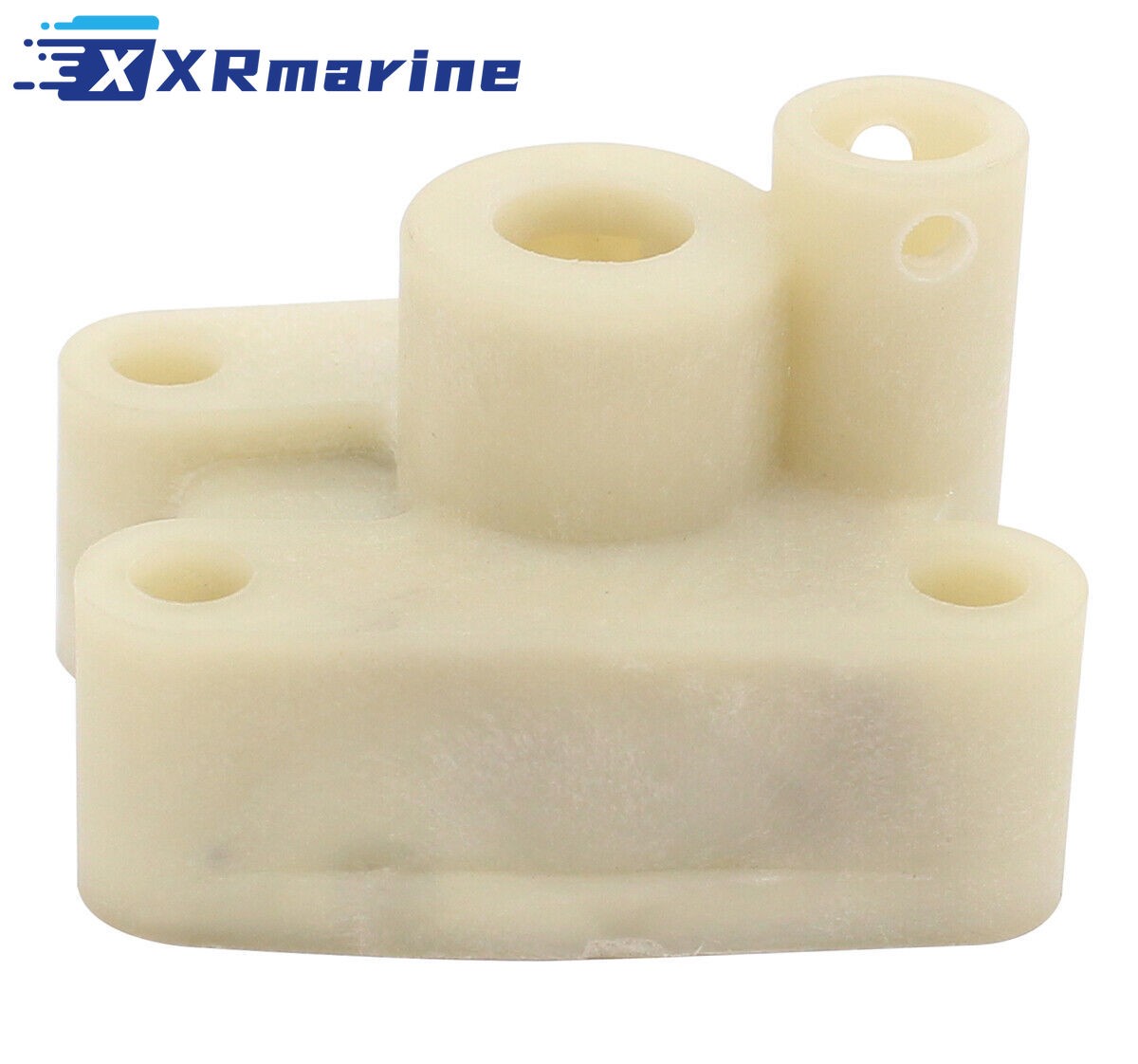

| Water pump housing | 6E0-44311-00 | 47-96299M |

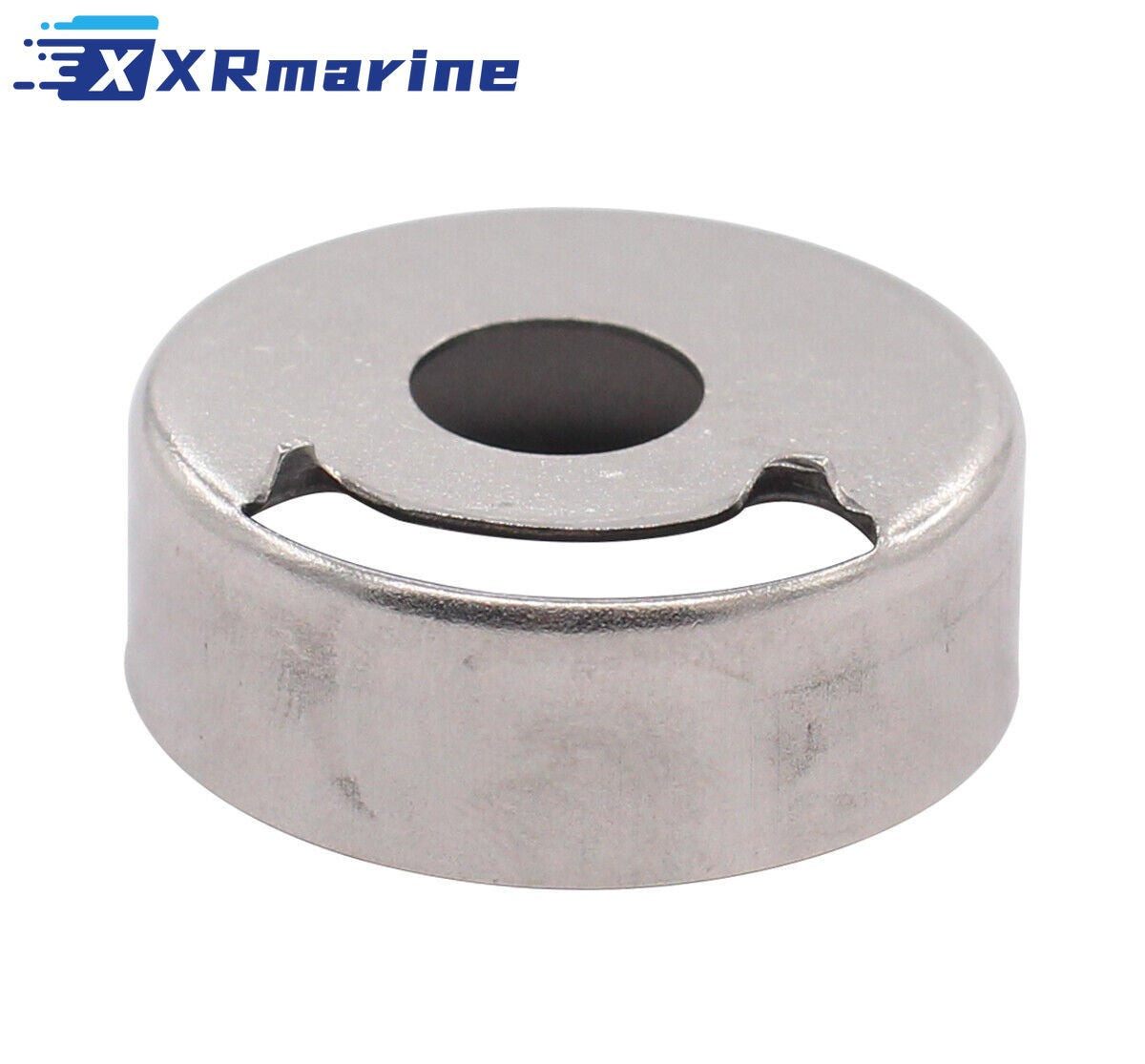

| Stainless insert cup | 6E0-44322-02 | 47-96302M |
| Impeller wear plate | 6E0-44323-00 | 47-41822 |
| Gasket, small seals | 6E0-44315-A0 | 47-96300 |
| Rubber damper | 6E0-44366-00 | 47-14186M |
Compatible Engines
| Horsepower | Brand and Type | Years | Notes |
|---|---|---|---|
| 4 HP | Yamaha 2 stroke | 1984 to 1999 | Direct fit |
| 5 HP | Yamaha 2 stroke | 1984 to 2002 | Direct fit |
| 4 HP | Yamaha 4 stroke | 2000 to 2005 | Direct fit |
| 6 HP | Yamaha 4 stroke F6 | As listed | Direct fit |
| 4 HP | Mariner 4AC | As listed | Serial code 6E0 |
| 4 HP | Mariner 4AS | As listed | Serial code 6E1 |
| 5 HP | Mariner 5C | As listed | Serial code 6E3 |
| 5 HP | Mariner 5CS | As listed | Serial code 6E4 |
| 4 HP | Mercury 4A | As listed | 6E0 models |
| 5 HP | Mercury 5C | As listed | 6E3 models |

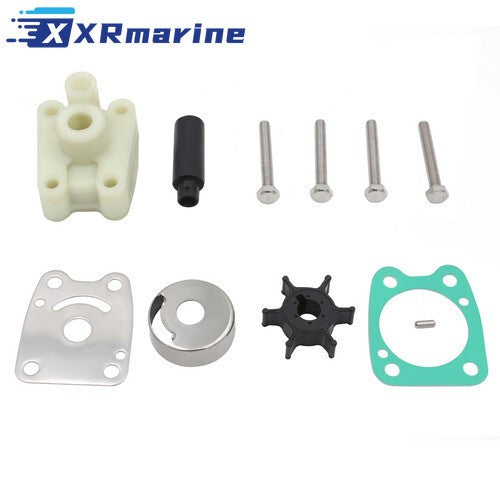

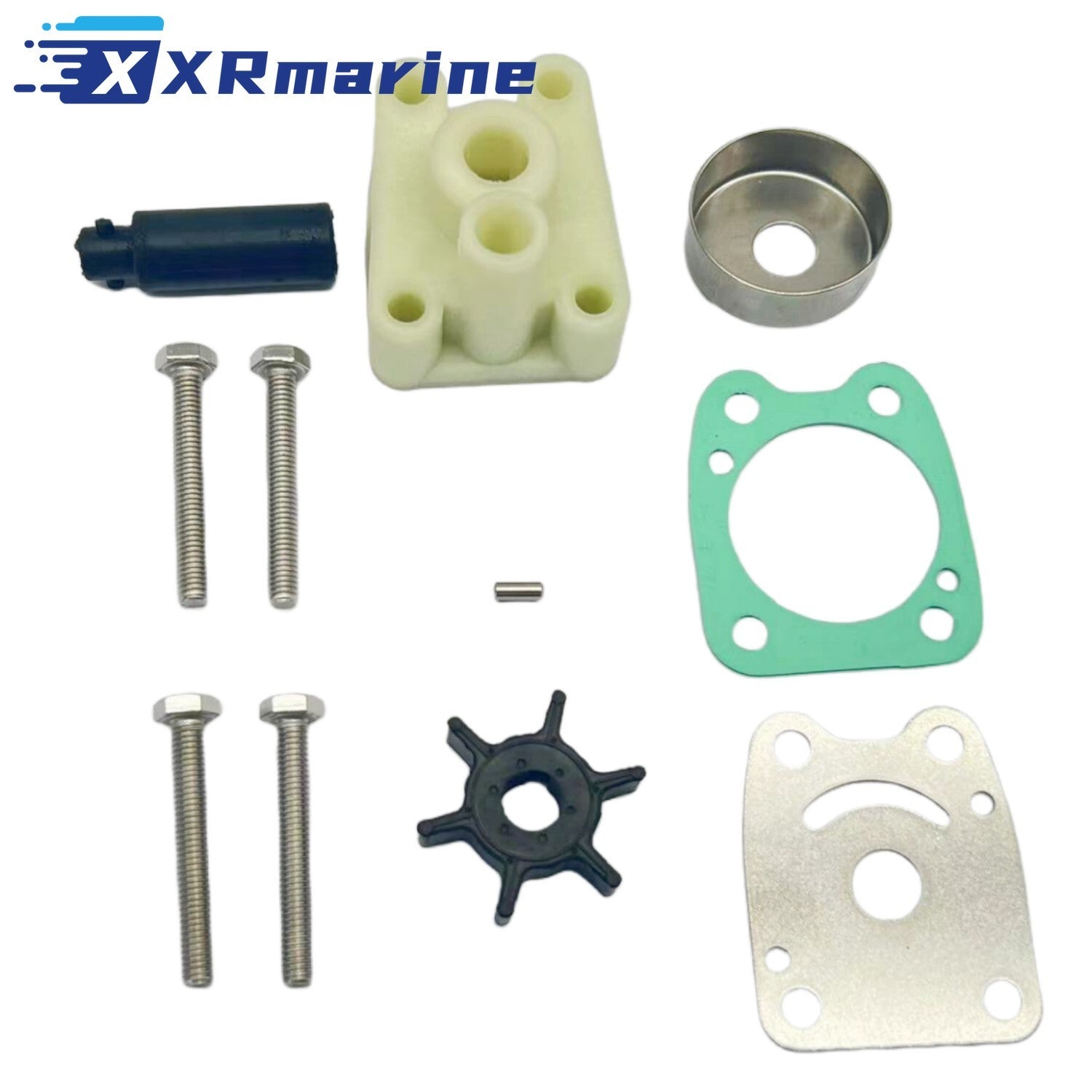

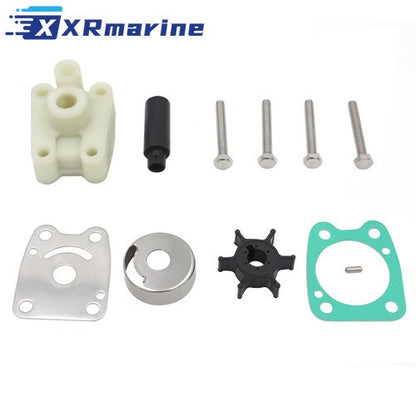

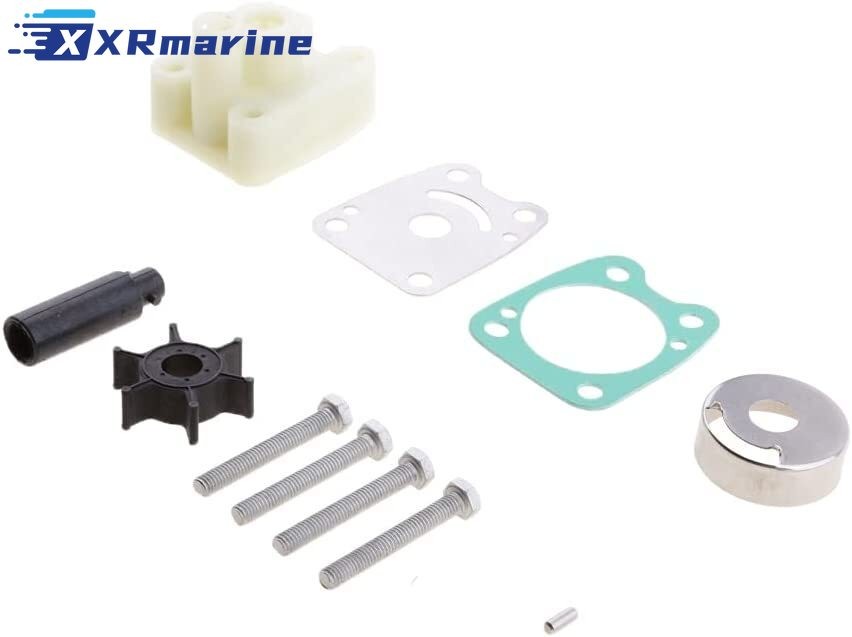

What's Included
| Component | Qty |
|---|---|

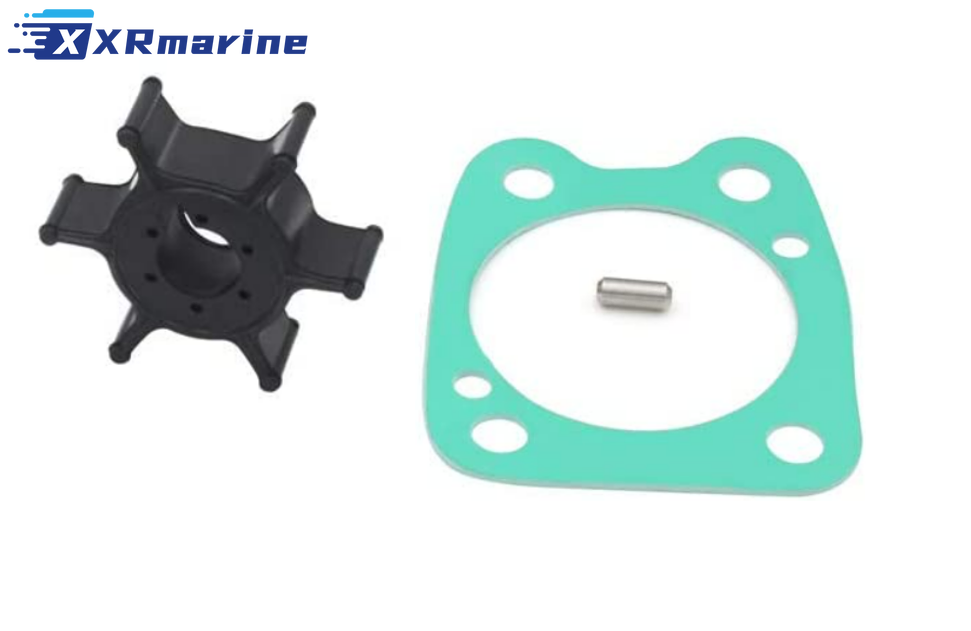

| Water pump impeller | 1 |
| Water pump housing | 1 |
| Stainless insert cup | 1 |
| Impeller wear plate | 1 |
| Pump gasket | 1 |
| Rubber water seal damper | 1 |
| Dowel pin | 1 |
| Bolt and washer | 4 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the serial code on the Mariner bracket, 6E0, 6E1, 6E3 and 6E4 are all covered but the earlier 6E9 is not
- Check the housing that comes off your motor against the new one, the round and square top housings are different
- Check the driveshaft for a worn key slot or a groove under the seal, either will finish a new impeller quickly
- Clean the mating faces before fitting the new gasket, old gasket left on shifts the housing and loses pressure
- Grease the cup and fold the impeller blades in the direction of rotation as it goes on
- Torque the four bolts evenly and check the telltale at idle before the first trip
