Water Pump Impeller Rebuild Kit 6E0-W0078-A2 for Yamaha Mercury Mariner 4 5 6 HP Outboard — Australia Local Warehouse
Water Pump Impeller Rebuild Kit 6E0-W0078-A2 for Yamaha Mercury Mariner 4 5 6 HP Outboard — Australia Local Warehouse
Product Overview
Complete water pump kit for Yamaha and Mariner 4 HP to 6 HP outboards, weighing 183 g and supplied as the whole pump rather than the rubber alone. It replaces Yamaha 6E0-W0078-A2, 6E0-W0078-A2-00, 6E0-W0078-02-00, 6E0-W0078-01-00, 68D-W0078-00 and 68D-WG078-00, Mercury Mariner 47-96305M, 46-96305M, 46-810952M, 46-810953M and 46-810954M, and crosses to Sierra 18-3073. Dispatched from our Australia local warehouse.

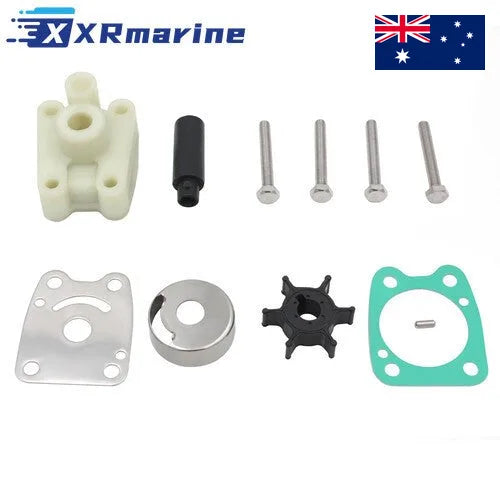

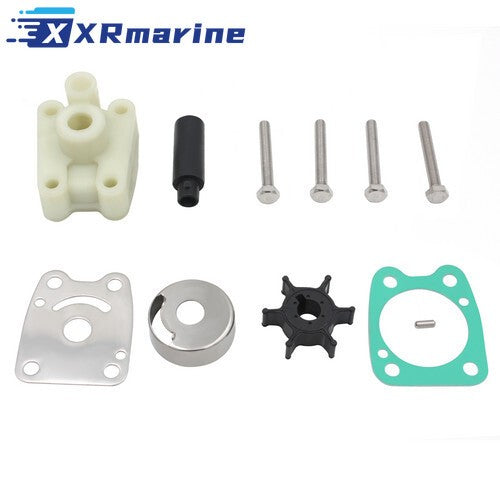

The kit carries every part of the pump that wears: the impeller 6E0-44352-00 (44352), the stainless insert cup 6E0-44322-02 (44322), the wear plate 6E0-44323-00 (44323), the housing 6E0-44311-00, the gasket, the rubber damper, the dowel pin and the four bolts.
That matters on an Australian tinny that is run up a sand ramp. A pump that has swallowed grit loses its cup and plate long before the impeller looks tired, and fitting a new impeller into a scored housing simply transfers the damage to the new rubber. This kit replaces the whole wet end in one sitting.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Complete outboard water pump kit |
| Components | Impeller, housing, insert cup, wear plate, gasket, damper, pin, bolts |
| Fitment | Yamaha and Mariner 4 HP to 6 HP |
| Stroke | Two stroke and four stroke, see the engine table |
| Country of Origin | Taiwan |
| Shipping Weight | 183 g |
| Quantity | 1 kit |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Yamaha kit | 6E0-W0078-A2, 6E0-W0078-A2-00 |
| Yamaha kit | 6E0-W0078-02-00, 6E0-W0078-01-00, 6E0-W0078-02 |
| Yamaha kit | 68D-W0078-00, 68D-WG078-00 |
| Mercury kit | 47-96305M, 46-96305M |
| Mercury kit | 46-810952M, 46-810953M, 46-810954M |
| Sierra | 18-3073 |
Assembly Components
| Component | Yamaha Number | Mercury Number |
|---|---|---|

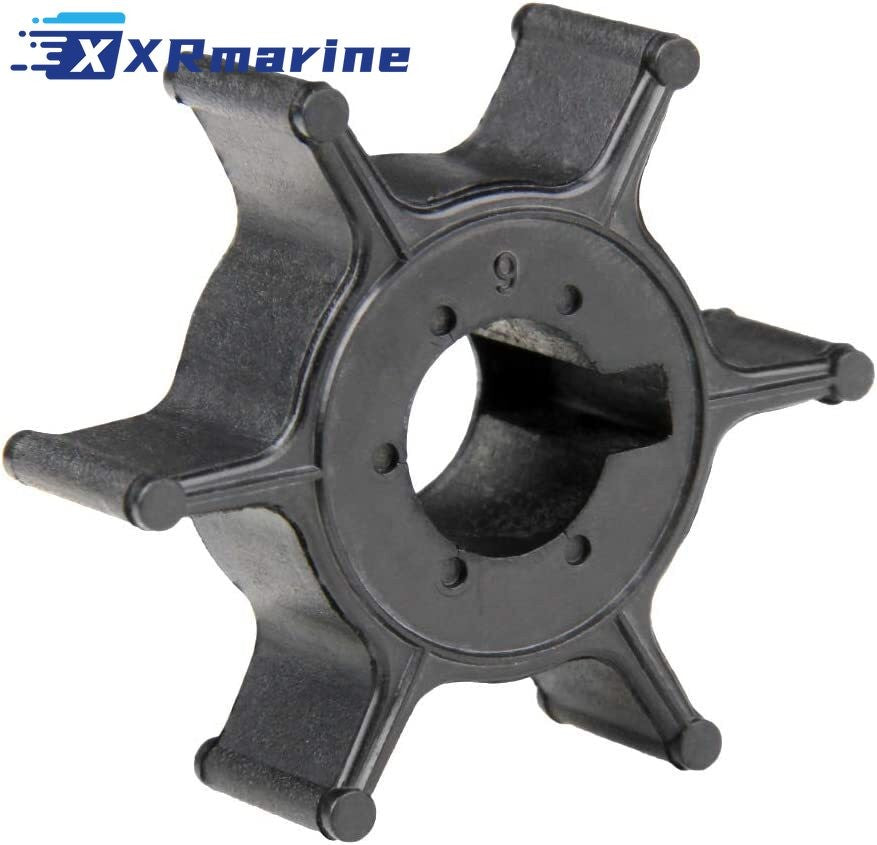

| Water pump impeller | 6E0-44352-00, 44352 | 47-96305M |

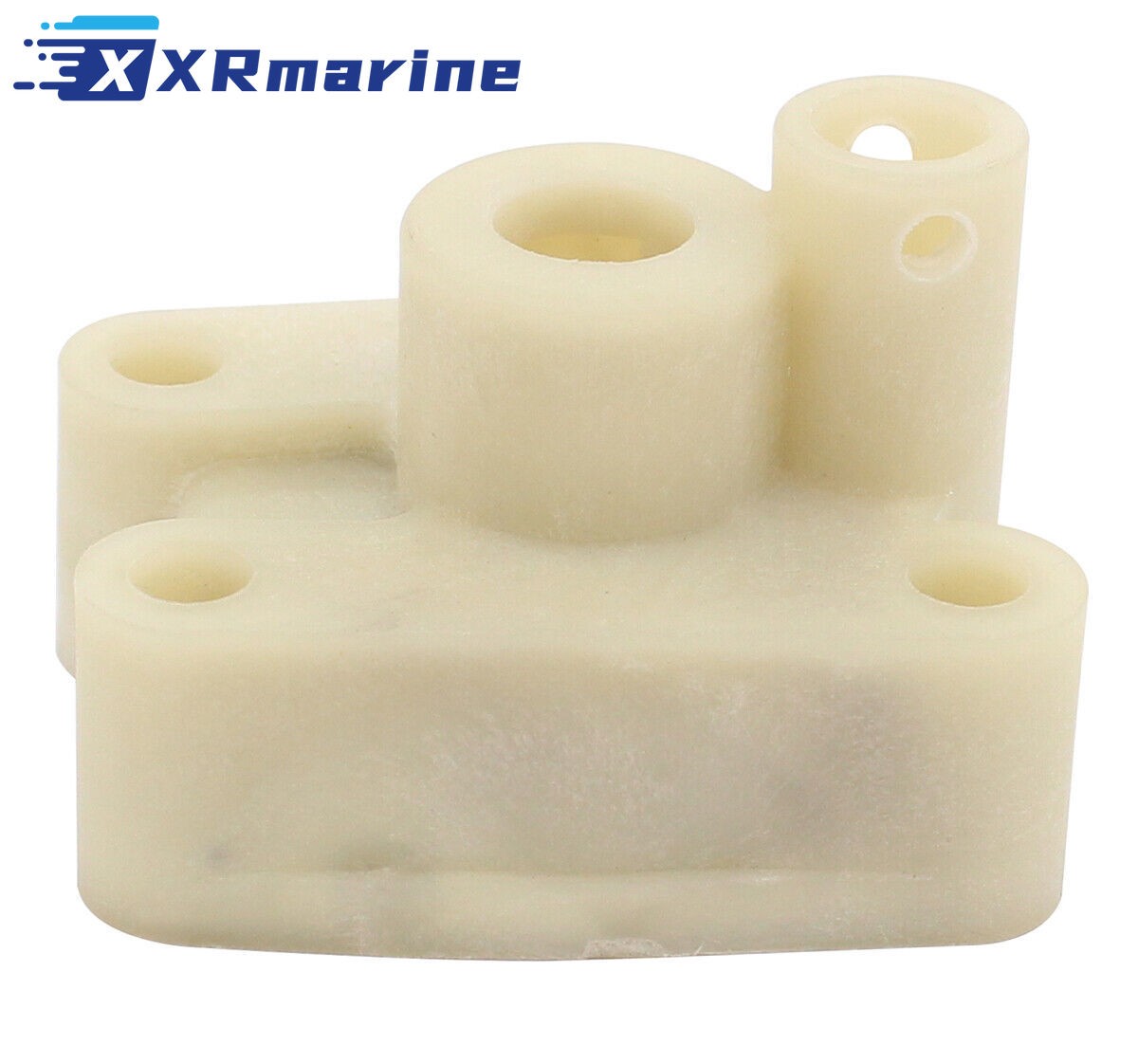

| Water pump housing | 6E0-44311-00 | 47-96299M |

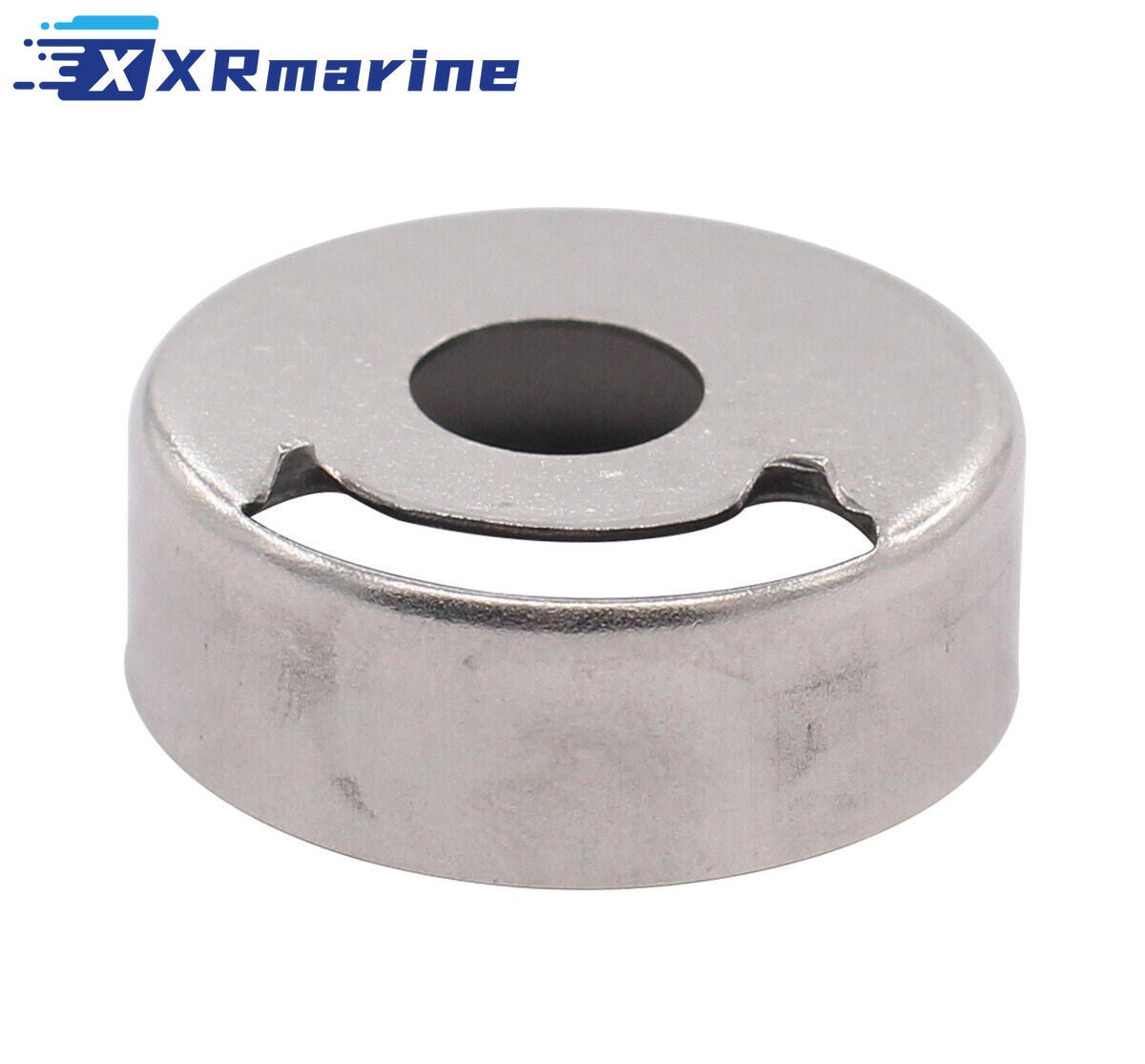

| Stainless insert cup | 6E0-44322-02, 44322 | 47-96302M |
| Impeller wear plate | 6E0-44323-00, 44323 | 47-41822 |
| Gasket and small seals | 6E0-44315-A0 | 47-96300 |
| Rubber damper | 6E0-44366-00 | 47-14186M |
| Dowel pin | 93604-09066 | Not listed separately |
| Bolt and washer | 97095-06045 | Not listed separately |
Compatible Engines
| Horsepower | Brand and Type | Years | Notes |
|---|---|---|---|
| 4 HP | Yamaha 2 stroke | 1984 to 1999 | Direct fit |
| 5 HP | Yamaha 2 stroke | 1984 to 2002 | Direct fit |
| 4 HP | Yamaha 4 stroke | 2000 to 2005 | Direct fit |
| 6 HP | Yamaha 4 stroke F6 | As listed | Direct fit |
| 4 HP | Mariner 4AC | As listed | Serial code 6E0 |
| 4 HP | Mariner 4AS | As listed | Serial code 6E1 |
| 5 HP | Mariner 5C | As listed | Serial code 6E3 |
| 5 HP | Mariner 5CS | As listed | Serial code 6E4 |
| 4 HP | Mercury 4A | As listed | 6E0 models |
| 5 HP | Mercury 5C | As listed | 6E3 models |
Serial Code Guide
| Code | Model Group | Covered Here |
|---|---|---|
| 6E0 | Mariner 4AC, Mercury 4A | Yes |
| 6E1 | Mariner 4AS | Yes |
| 6E3 | Mariner 5C, Mercury 5C | Yes |
| 6E4 | Mariner 5CS | Yes |
| 6E9 | Earlier 4 and 5 HP | No, different pump |

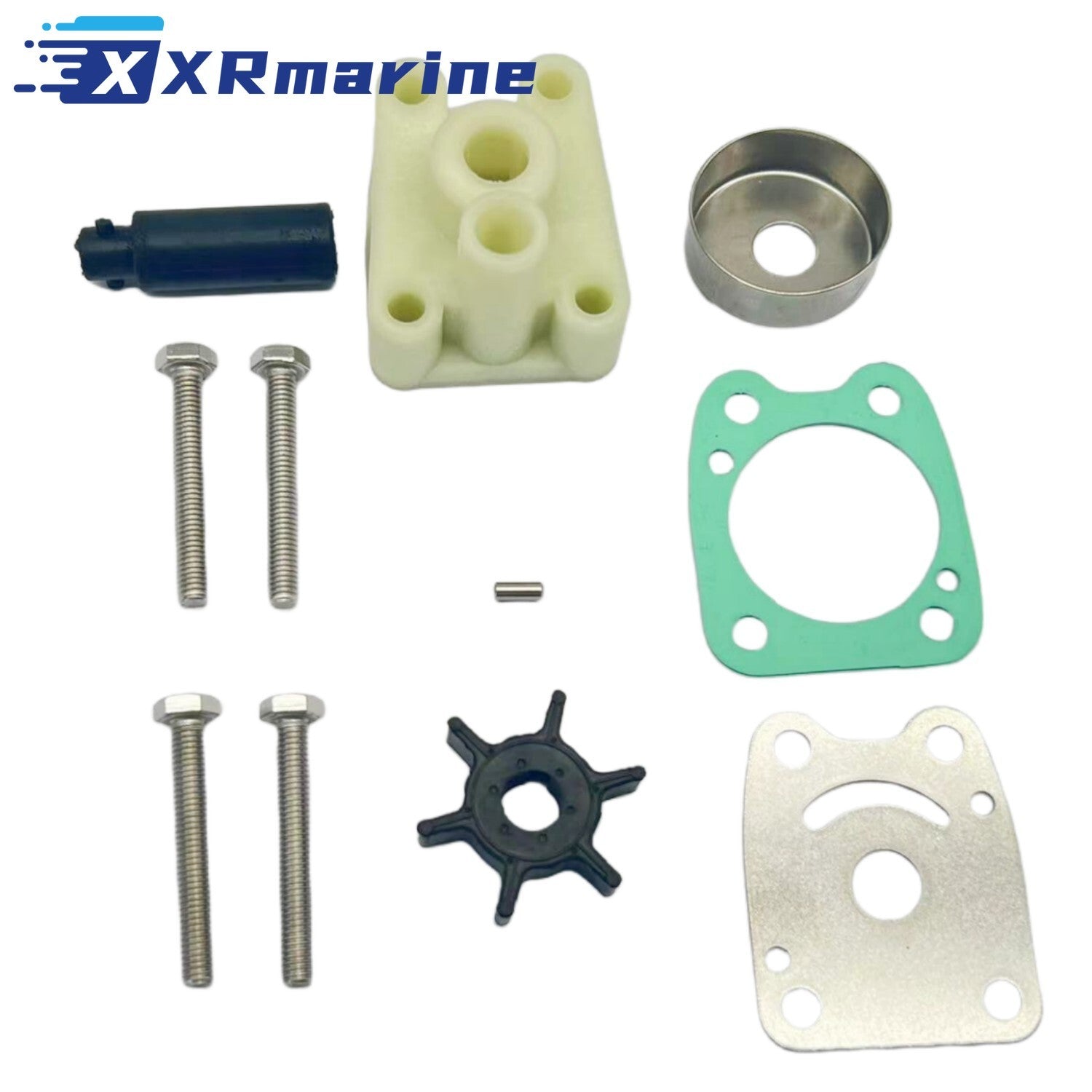

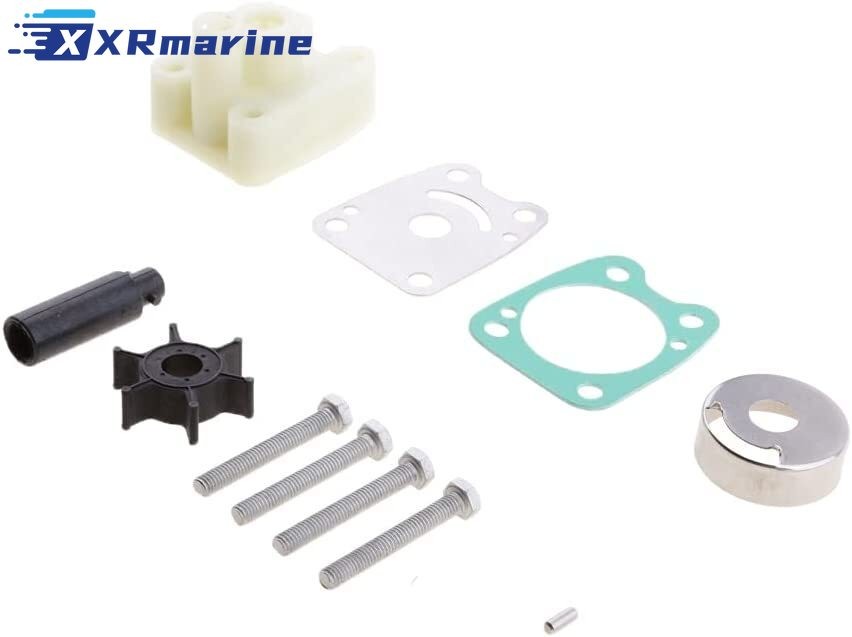

What's Included
| Component | Qty |
|---|---|

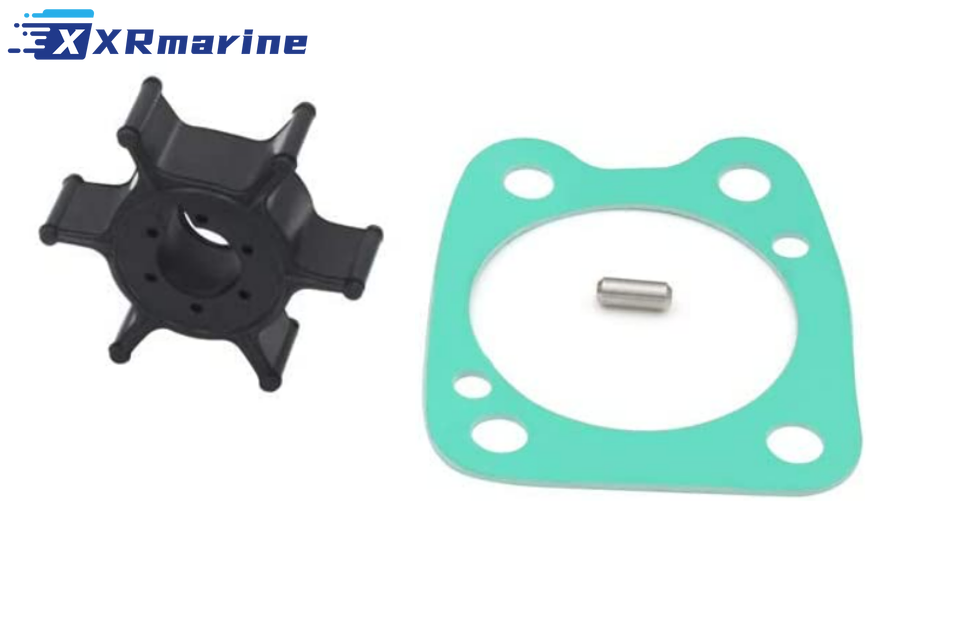

| Water pump impeller | 1 |
| Water pump housing | 1 |
| Stainless insert cup | 1 |
| Impeller wear plate | 1 |
| Pump gasket | 1 |
| Rubber water seal damper | 1 |
| Dowel pin | 1 |
| Bolt and washer | 4 |
Full Kit or Impeller Only
| Your Pump | Right Choice | Why |
|---|---|---|
| Housing and cup clean, only the rubber is tired | Impeller only | The rest of the pump still seals |
| Cup scored, plate grooved or housing worn | This complete kit | A new impeller will not seal in a worn cup |
| Ran dry or overheated | This complete kit | Heat usually takes the cup and gasket with it |
| Unknown history, motor bought used | This complete kit | You inspect and rebuild the wet end once |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Drain the gearcase and split the lower unit |
| 2 | Note the blade direction and photograph the pump before stripping |
| 3 | Check the driveshaft key slot and the seal surface for grooves |
| 4 | Clean both mating faces, old gasket left on shifts the housing |
| 5 | Fit the gasket, wear plate and insert cup into the housing |
| 6 | Grease the cup and fold the impeller blades in the running direction |
| 7 | Seat the dowel pin and torque the four bolts evenly |
| 8 | Check the telltale at idle on muffs before the boat goes back in |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Check the serial code on the Mariner bracket, 6E0, 6E1, 6E3 and 6E4 are covered, the earlier 6E9 is not
- Compare the housing that comes off the motor, round and square top housings are different
- Check the driveshaft key slot and seal surface before fitting a new pump
- Clean the mating faces first, old gasket left on loses pump pressure
- This is the complete pump kit, not the impeller alone
- 30-Day Easy Returns
- Ships from our Australia local warehouse
