Water Pump Impeller Kit 646-44352-01 for Yamaha Mariner 2HP 2 Stroke 18-3072
Water Pump Impeller Kit 646-44352-01 for Yamaha Mariner 2HP 2 Stroke 18-3072
Product Overview

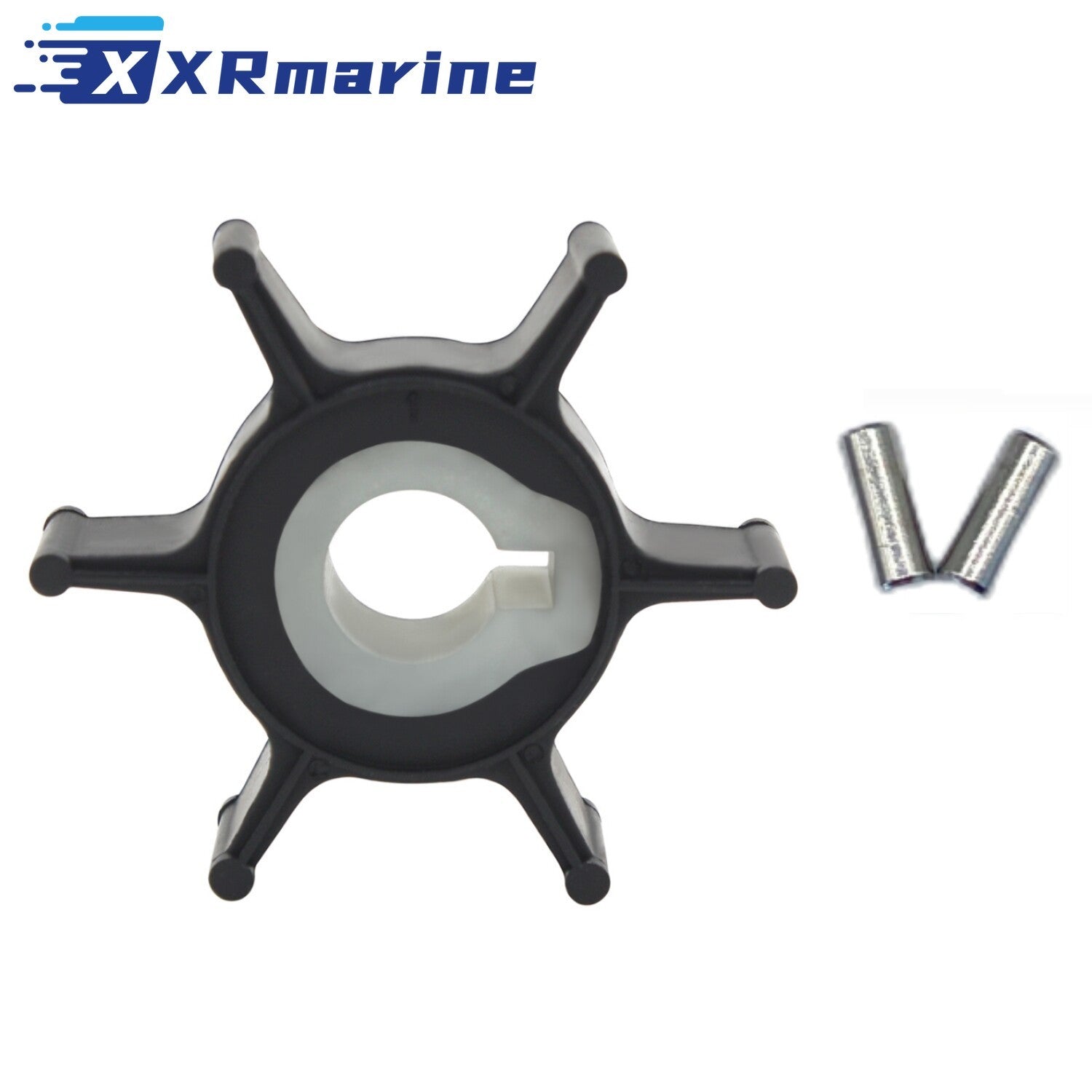

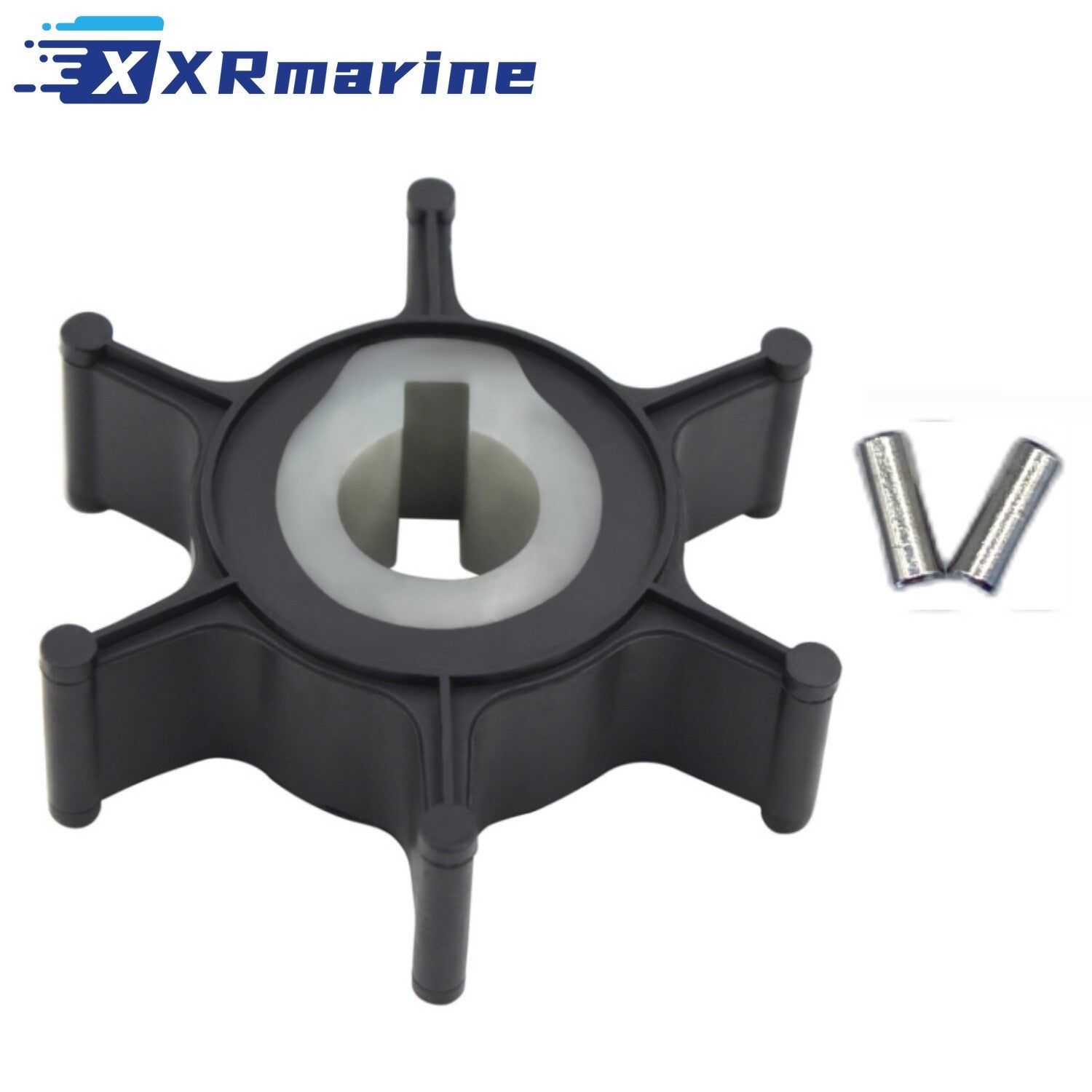

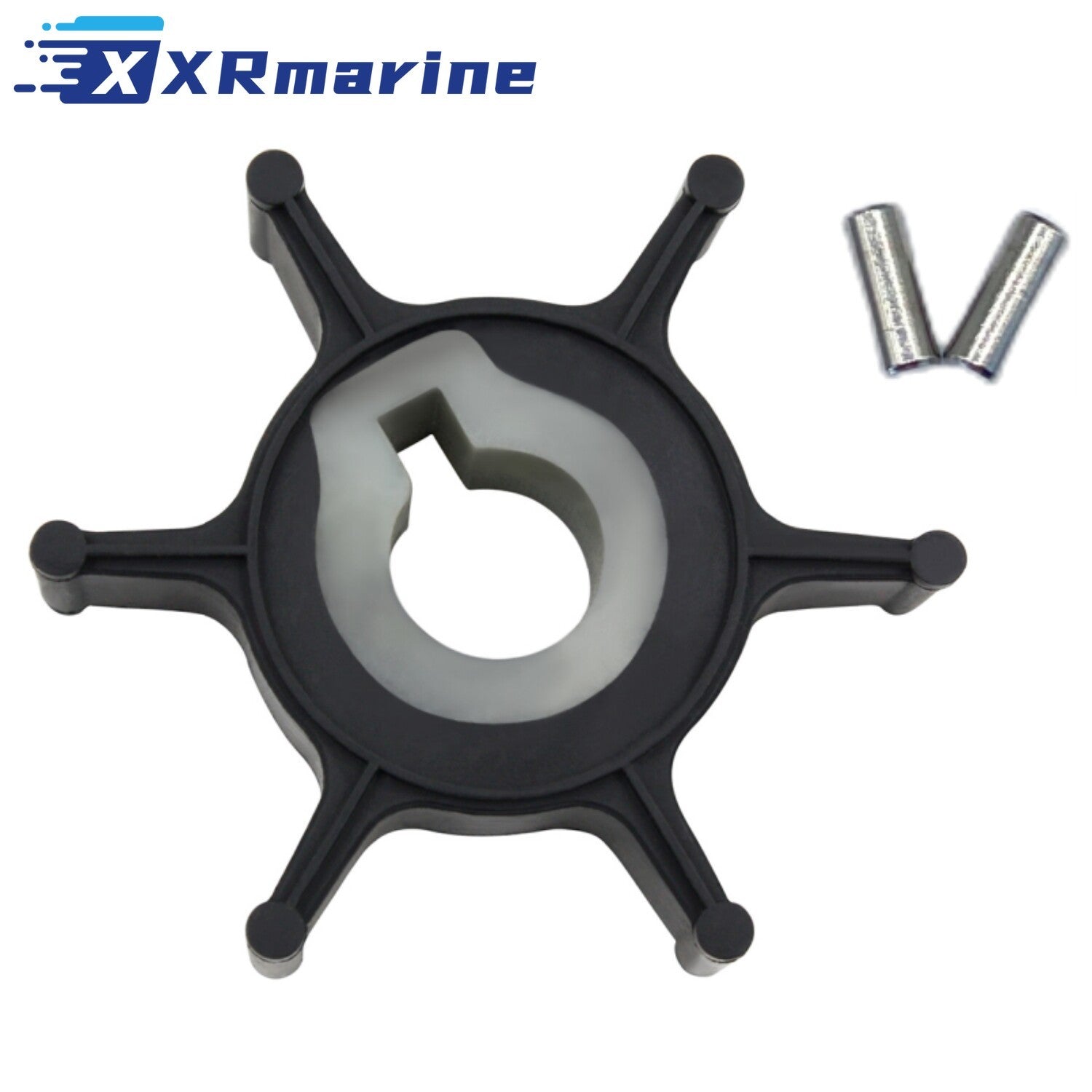

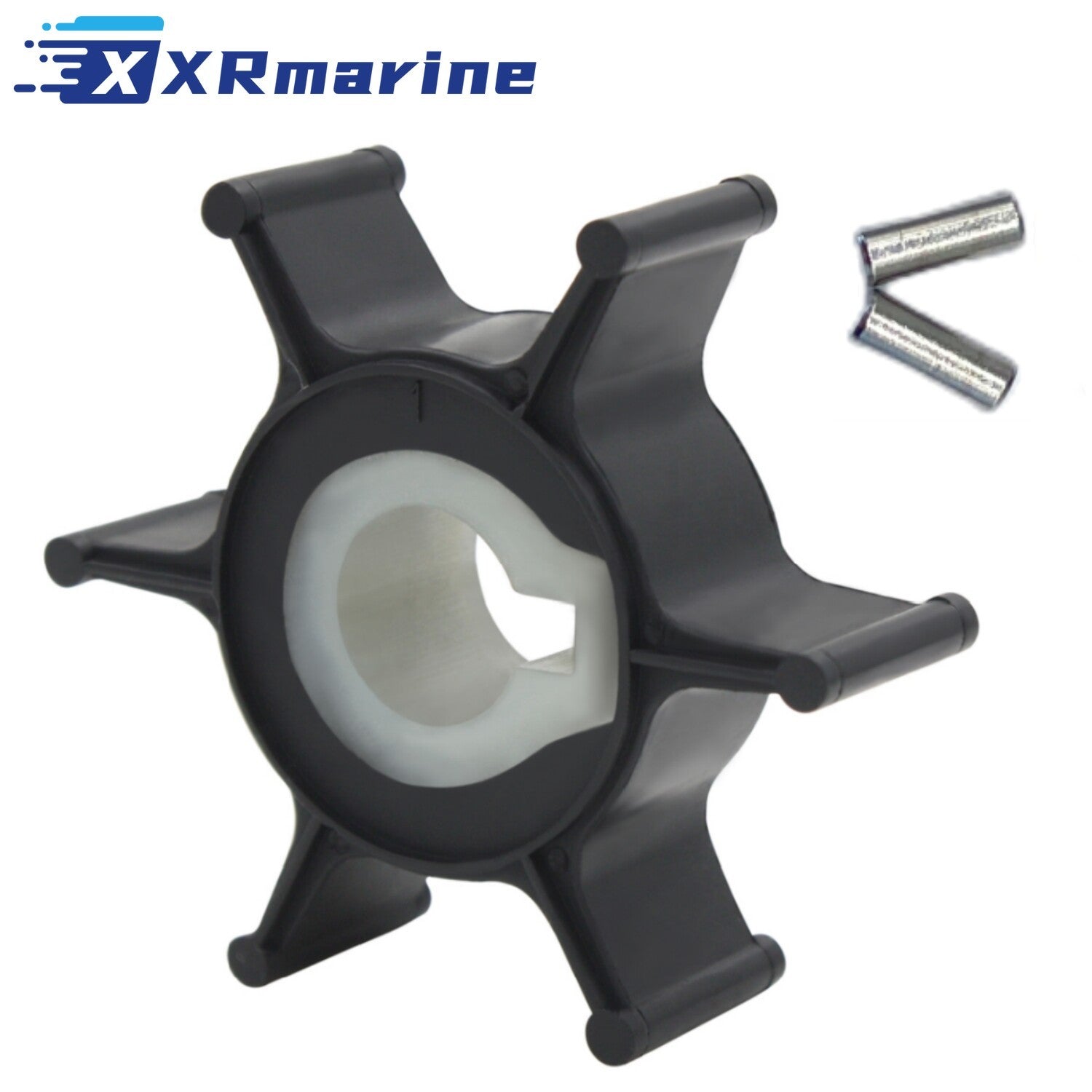

Water pump impeller kit part with drive pins for Yamaha and Mariner 2 HP two stroke outboards, replacing 646-44352-01 and 646-44352-00 and crossing to Sierra 18-3072. It is supplied as 1 x impeller and 2 x drive pins.
The impeller measures 47.5 mm outside diameter, 10.88 mm at the shaft and 13.85 mm high, with 6 neoprene blades on a key drive. The two pins are the parts that actually drive the impeller, and they are what turns a small impeller kit into a usable one when the old pins come out worn or bent.
It fits the Yamaha 2A and 2B from 1984 to 2002, identified by a serial number starting with 646 or 6A1, and the Yamaha built Mariner 2 HP of the same period. These are the smallest motors in the range, so the pump is easy to reach once the lower unit is down.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller kit with drive pins |
| Outer Diameter | 47.5 mm (1.87 in) |
| Inner Diameter | 10.88 mm (0.43 in) |
| Height | 13.85 mm (0.55 in) |
| Blades | 6 |
| Shaft Type | Key drive |
| Material | Neoprene rubber |
| Net Weight | 25.5 g |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Yamaha | 646-44352-01, 646-44352-00 |
| Mercury Mariner | 47-80395M |
| Sierra | 18-3072 |
Compatible Engines
| Engine | Model | Years |
|---|---|---|
| Yamaha 2 HP two stroke | 2A, serial starting 646 | 1984 to 2002 |
| Yamaha 2 HP two stroke | 2B, serial starting 6A1 | 1984 to 2002 |
| Mariner 2 HP two stroke | Yamaha built | Same period |
| Not for | 3 HP and above | Uses a larger 6E0 or 6L5 pump |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller, 6 blade | 1 |
| Drive pin | 2 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the serial number starts with 646 or 6A1, the 3 HP motor takes a different impeller
- Measure the old impeller at 47.5 mm outside and 13.85 mm high
- Check the old pins for wear, a flattened pin lets the impeller slip on the shaft
- Check the pump housing for scoring, a grooved housing wears new blades out in a season
- Lubricate the impeller with glycerine and turn the shaft by hand to set the blade direction
- Check the telltale at idle and again at planing speed on the first run
