Product Overview

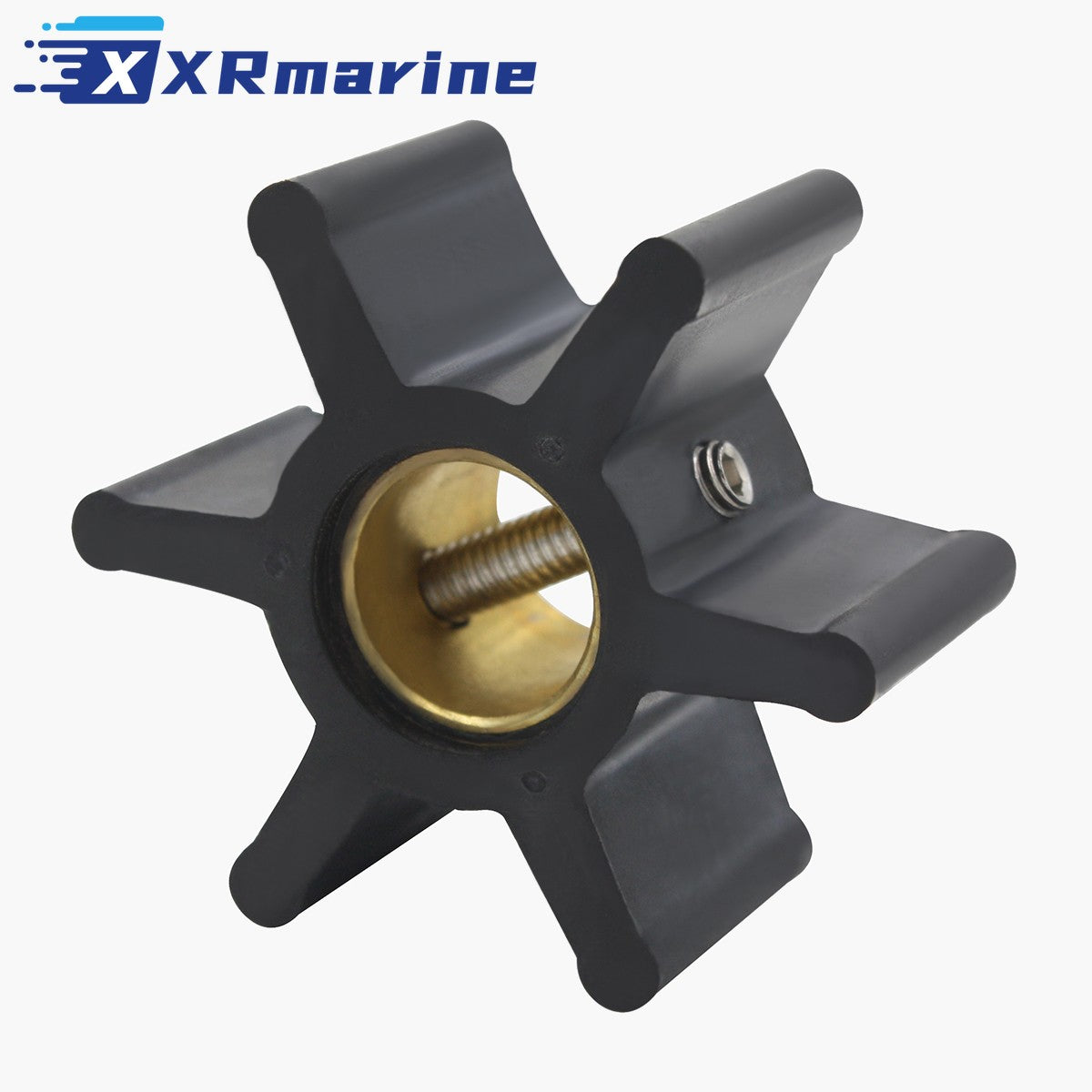

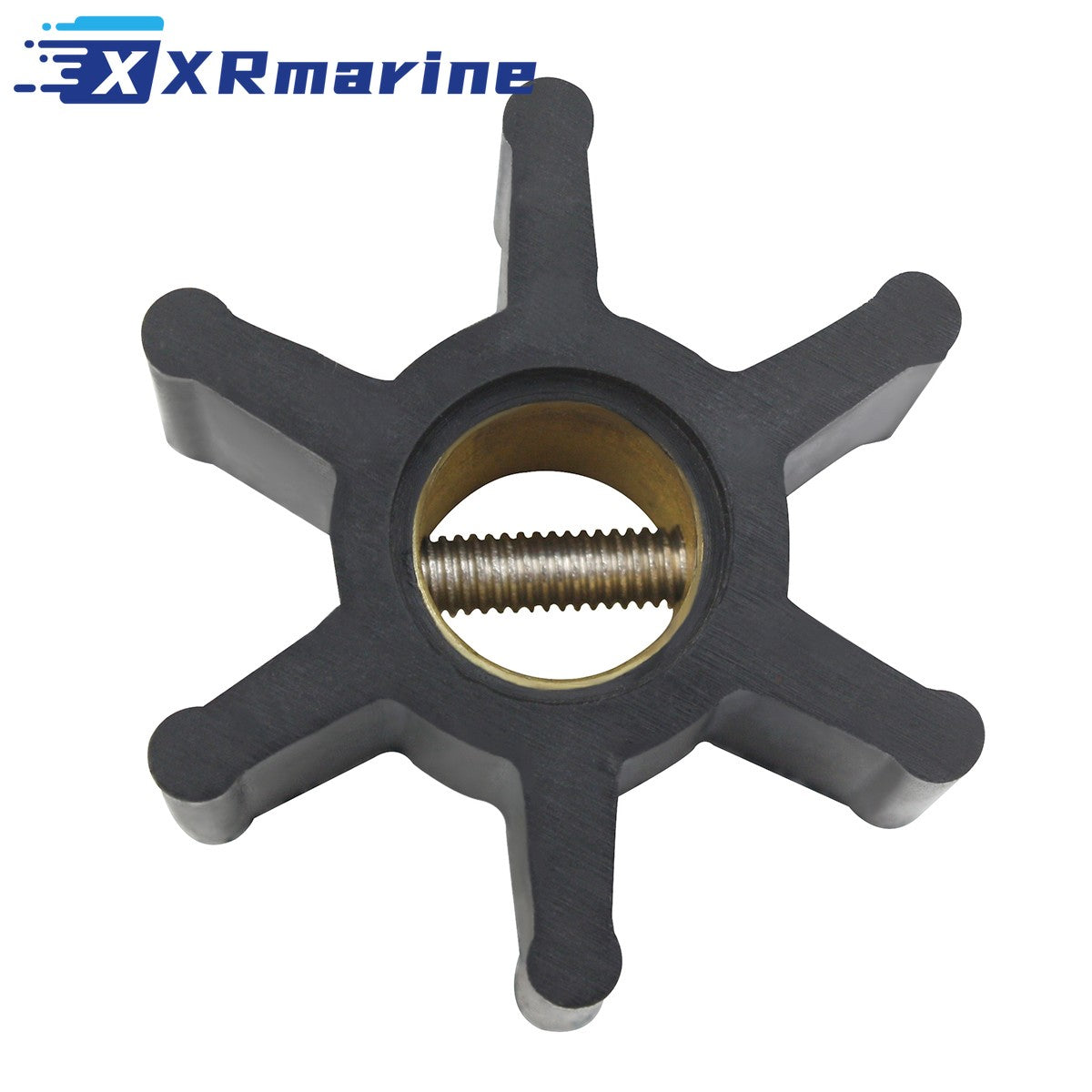

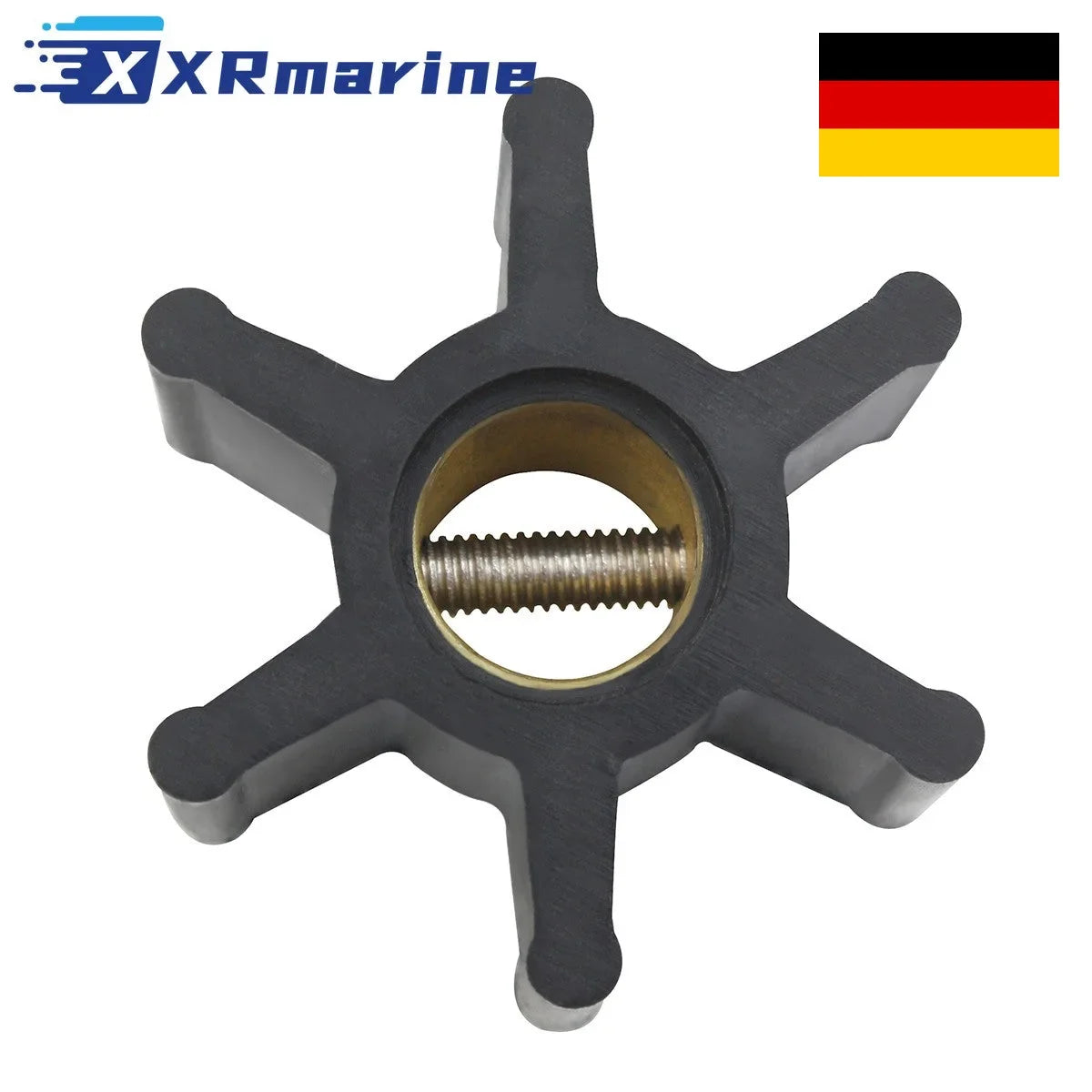

Flexible impeller kit for pumps built on the small pin drive body, 40 mm outside diameter, 19 mm wide, 12 mm shaft, 6 neoprene blades with a brass insert, supplied with a gasket and an O-ring in a 15 x 10 x 3 cm pack. It replaces Jabsco 22405-0001, Johnson 09-808B, Volvo Penta 875583, Westerbeke 32620, Onan 132-0310 and Fischer Panda J009-46840. Shipped from our Germany local warehouse.
Most of these kits in Germany go into genset and auxiliary diesel pumps rather than outboards: Fischer Panda and Onan sets on motor cruisers, Bukh and BMW diesels in inland boats, Westerbeke pulley drive pumps. On a long river passage the generator often runs for hours unattended, which is why the cooling impeller is worth carrying as a spare.

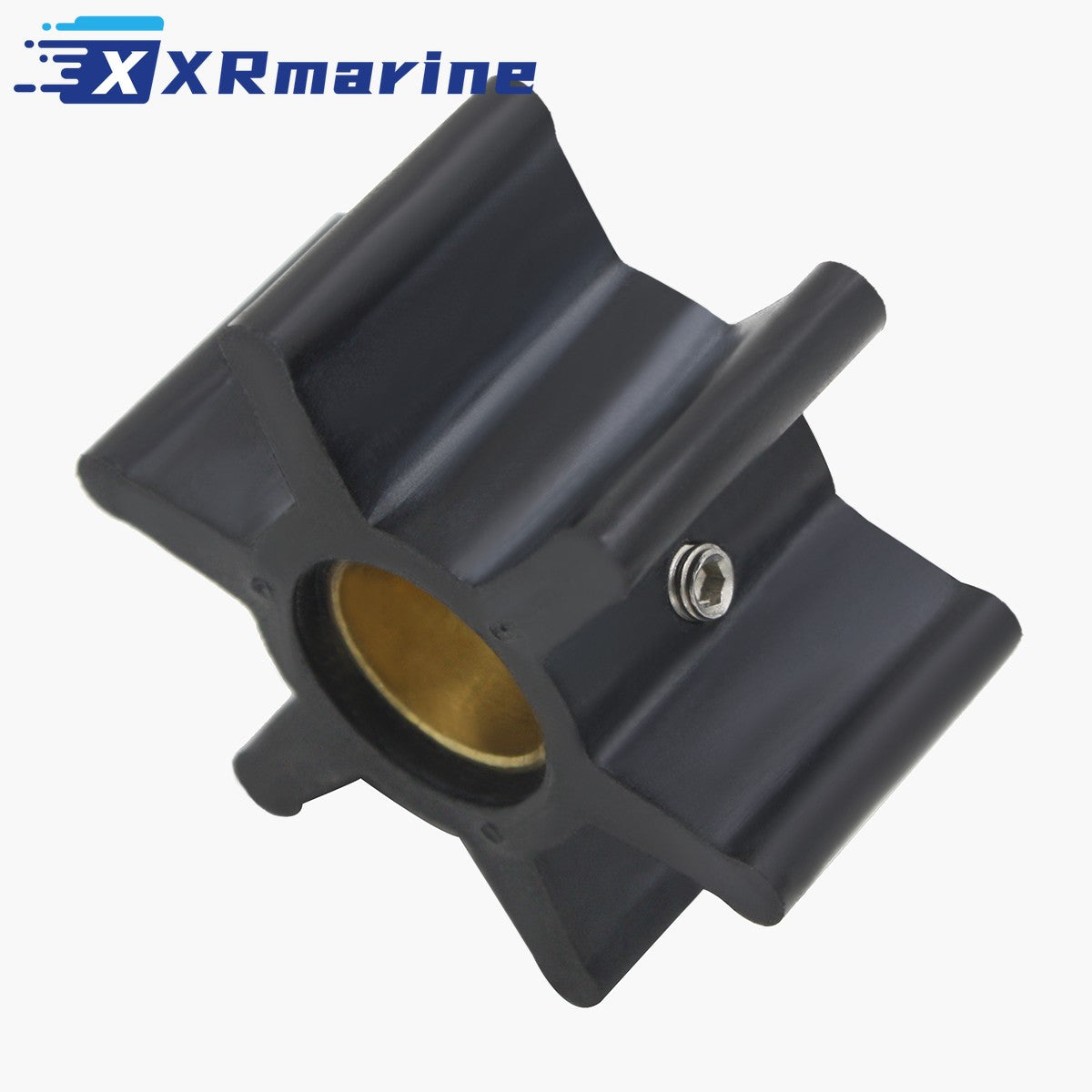

The drive is a pin in the shaft, not a key or a spline. The pin and its slot in the hub wear together, so a new impeller on a worn pin will slip and stop moving water even though the blades look perfect.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible impeller kit |
| Drive Type | Pin drive, slotted shaft |
| Blades | 6 |
| Outer Diameter | 40 mm (1.57 in) |
| Width | 19 mm (0.74 in) |
| Shaft Diameter | 12 mm (0.47 in) |
| Material | Neoprene |
| Insert Material | Brass |
| Kit Parts | Impeller, gasket, O-ring |
| Country of Origin | Taiwan |
| Pack Size | 15 x 10 x 3 cm |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Jabsco | 22405-0001, 22405-0001-P, 4528-0001, 4528-0003 |
| Johnson | 09-808B, 09-45589 |
| Volvo Penta | 875583, 833995, 3586496, 21951344 |
| Westerbeke | 32620, 032620, 32680, 46622 |
| Fischer Panda | J009-46840 |
| Onan | 132-0310, 132-0311, 132-0284, 132-0336 |
| CEF | 500121 |
| Maze | 80161 |
| JMP | 7000-01 |
| DJ Pump | 08-31-0601 |
| Bukh | DV series cooling pump |
| BMW | D7, D12 |
Compatible Engines
| Brand | Model or Pump | Note |
|---|---|---|
| Jabsco | Pumps 52010-2001, 52010-2051, 29300-2201C | Jabsco pump bodies |
| Johnson | F35B Duo, F35B FWP, F35B SWP | Pumps 10-24638-01, 10-24638-02, 10-24638-03 |
| Johnson | F35B-8, F35B-802, F35B-8007, F35B-8027 | F35 pump family |
| Volvo Penta | Pumps 840557, 858065, 807368 | Petrol engine cooling pumps |
| Volvo Penta | Pumps 833415, 833522, 833883 | Petrol engine cooling pumps |
| Westerbeke | Models 46120, K34A, K34M, 45765 | Pulley drive pump |
| Bukh | DV8ME, DV8SME, DV10LME, DV10LSME, DV10M | Marine diesel |
| Bukh | DV10ME, DV10SME, DV18LME, DV18LSME | Marine diesel |
| Bukh | DV20M, DV20ME, DV20SME, DV24ME, DV24SME | Marine diesel |
| Fischer Panda | Panda 14 000 NE PMS Kubota | Generator set |
| Fischer Panda | Panda 3.8 ND PMS FAR, Panda 4.5 ND PMS FAR | Generator set |
| Fischer Panda | Panda 4500 FCB, SCB, SCE PMS FAR | Generator set |
| Fischer Panda | Panda 5000 LPE PMS Kubota, PMS 4 FAR | Generator set |
| BMW | D7, D12 | Marine diesel cooling pump |
| Onan | MDKUB 5, 6, 7.5 and 9 KW | Generator set cooling pump |

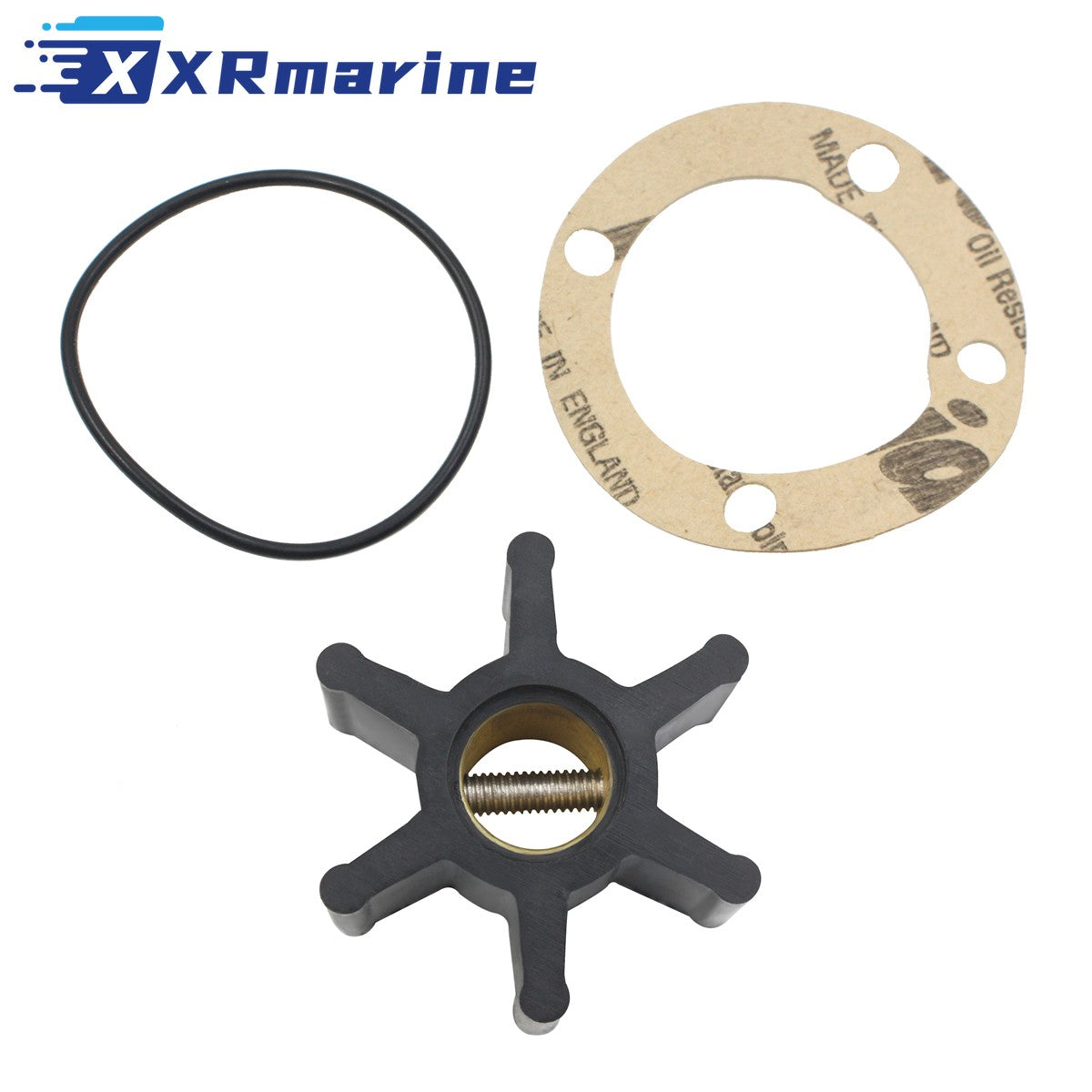

What's Included
| Component | Qty |
|---|---|
| Flexible impeller, 6 blade | 1 |
| Gasket | 1 |
| O-ring | 1 |
Gensets and Auxiliary Diesels
| Situation | Why This Kit | Point to Check |
|---|---|---|
| Generator runs for hours at anchor | Impeller runs dry less, but runs long and hot | Cover plate scoring |
| Fischer Panda set with Kubota engine | J009-46840 pump body | Pin and slot wear |
| Onan MDKUB set | 132-0310 and 132-0311 pumps | Gasket seating face |
| Bukh or BMW inland diesel | Small pin drive body | Shaft size, 12 mm |
| Volvo petrol engine cooling pump | 875583 and 833995 bodies | Cam wear inside the housing |
| Winter lay up on the hard | Rubber takes a set over months | Fit in spring, not autumn |
| Long river or canal cruise | No chandlery for a hundred kilometres | Carry a spare kit on board |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Measure the old impeller at 40 mm outside and 19 mm wide, the neighbouring body takes a 51 mm and will not seal |
| 2 | Check the pin and the slot in the hub, a worn pin slips and the pump stops moving water |
| 3 | Check the shaft is 12 mm, the same casting was built with other shaft sizes |
| 4 | Inspect the cover plate and the cam for scoring, a grooved plate loses flow whatever the impeller |
| 5 | Lubricate with glycerine or soap, never grease or oil on neoprene |
| 6 | Fold the blades in the direction of rotation as the cover goes on |
| 7 | Open the seacock and confirm flow at the outlet before loading the engine or the genset |
| 8 | Carry the old kit as a pattern and keep one spare on board for a long passage |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU delivery, no customs charge |
| Other EU destinations | Germany local warehouse | EU delivery, VAT included |
Before You Buy
- Measure the old impeller at 40 mm outside and 19 mm wide before ordering
- Check the pin and the slot in the hub, a worn pin slips on a new impeller
- Check the shaft is 12 mm, the same casting was built with other shaft sizes
- Inspect the cover plate and cam for scoring
- Lubricate with glycerine or soap only, never grease or oil on neoprene
- This is the impeller, gasket and O-ring kit, the pump body and cover plate are not included
- 30-Day Easy Returns
- Ships from our Germany local warehouse
