Water Pump Kit 6AH-W0078-00 for Yamaha F15C F20 15 20 HP 4-Stroke 2006-2018
Water Pump Kit 6AH-W0078-00 for Yamaha F15C F20 15 20 HP 4-Stroke 2006-2018
Product Overview

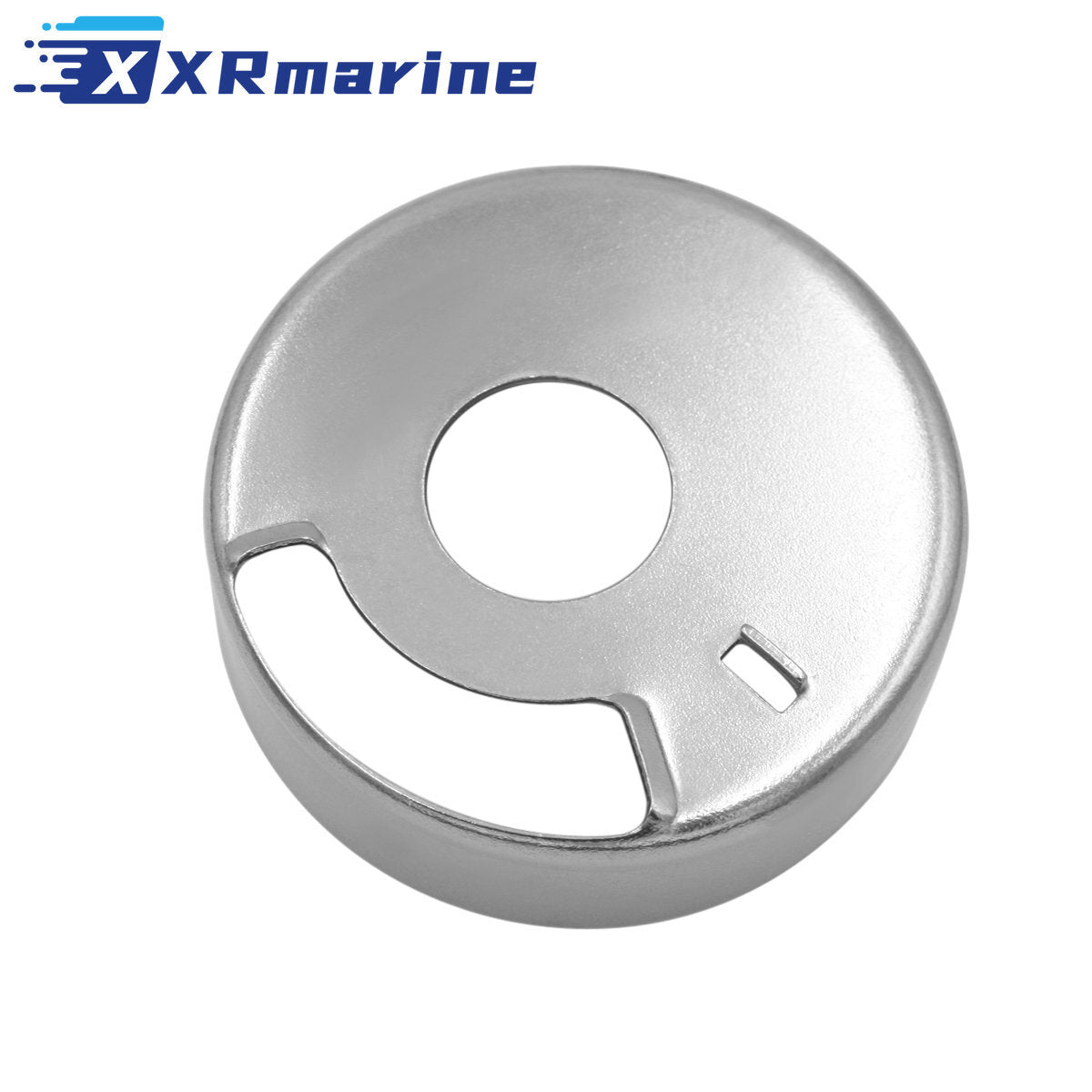

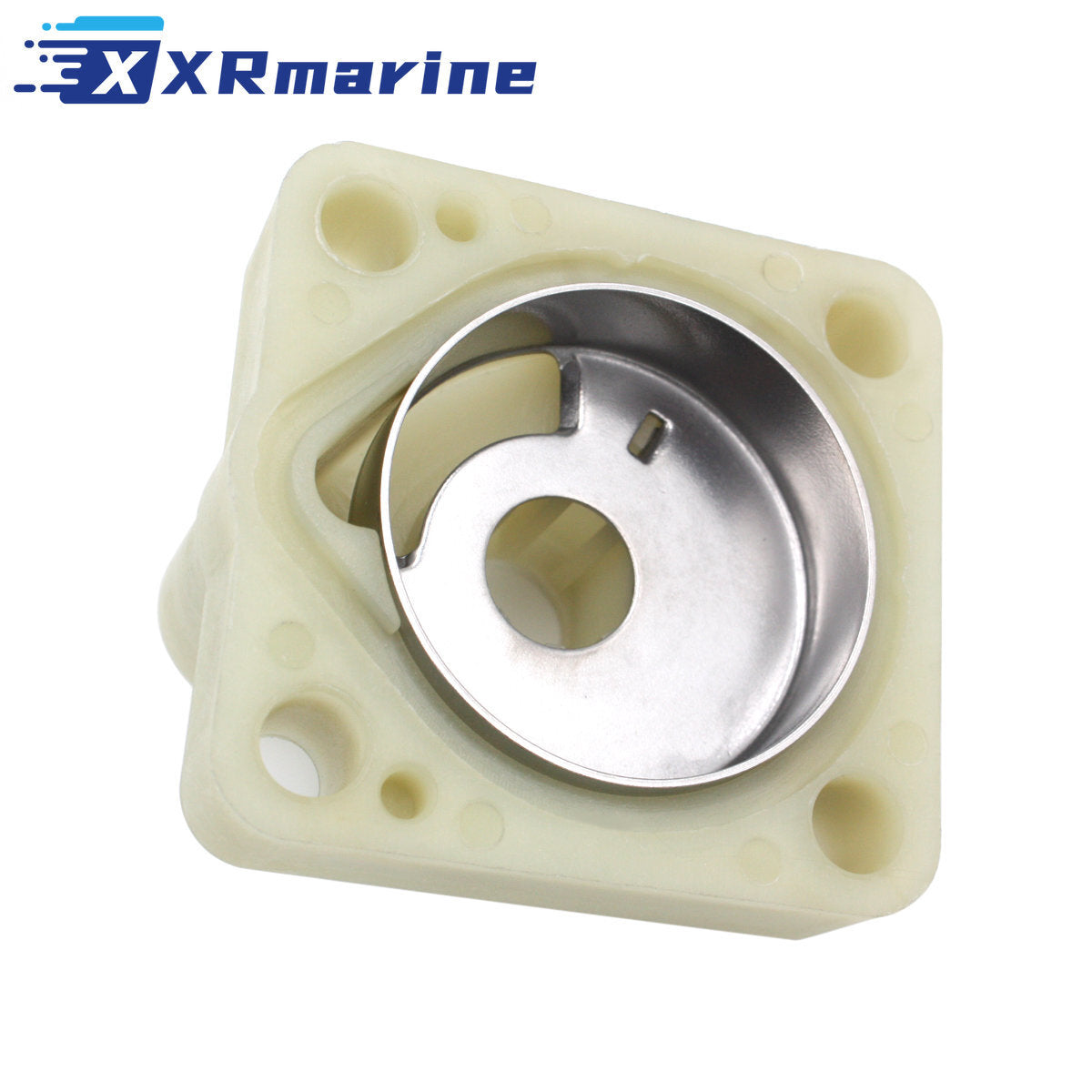

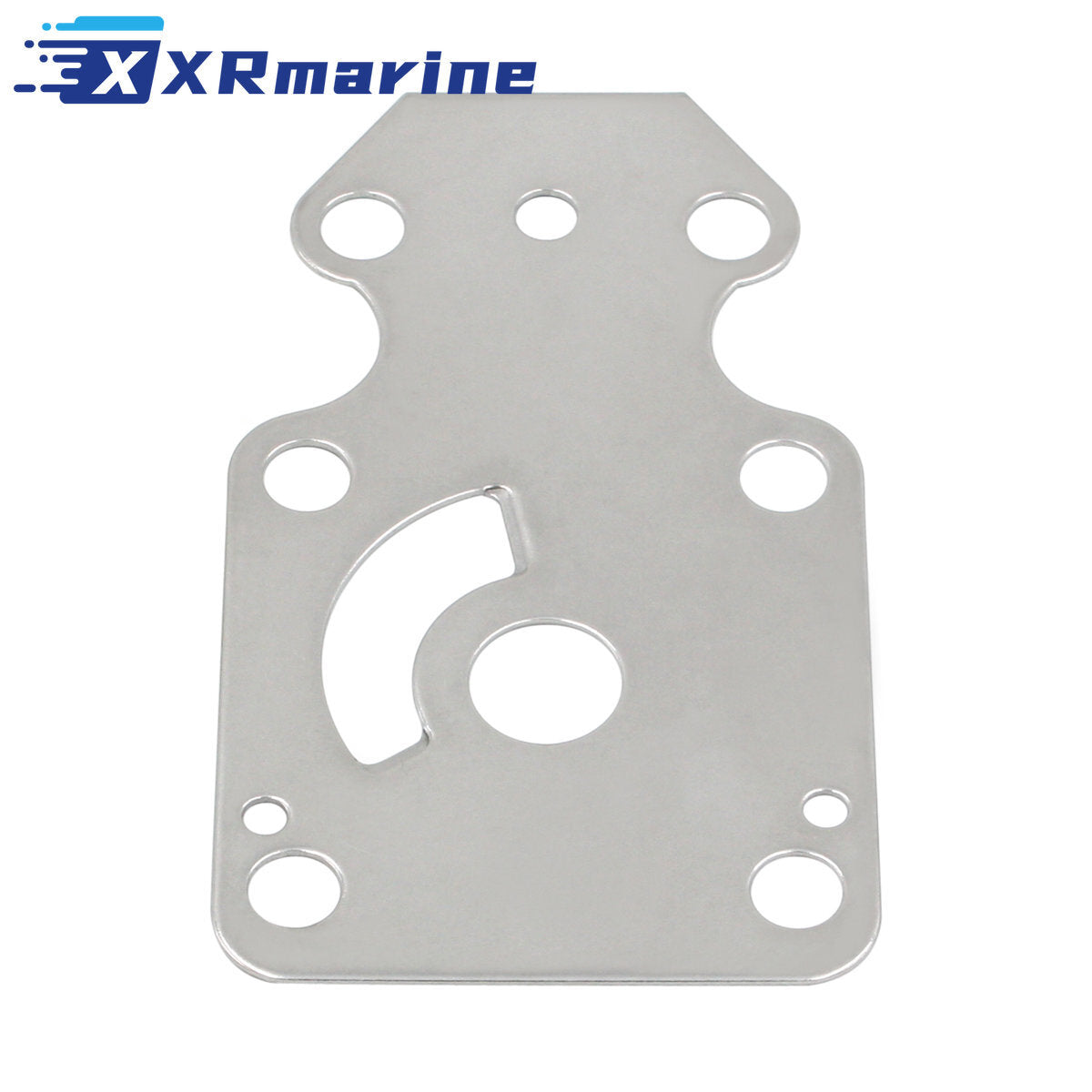

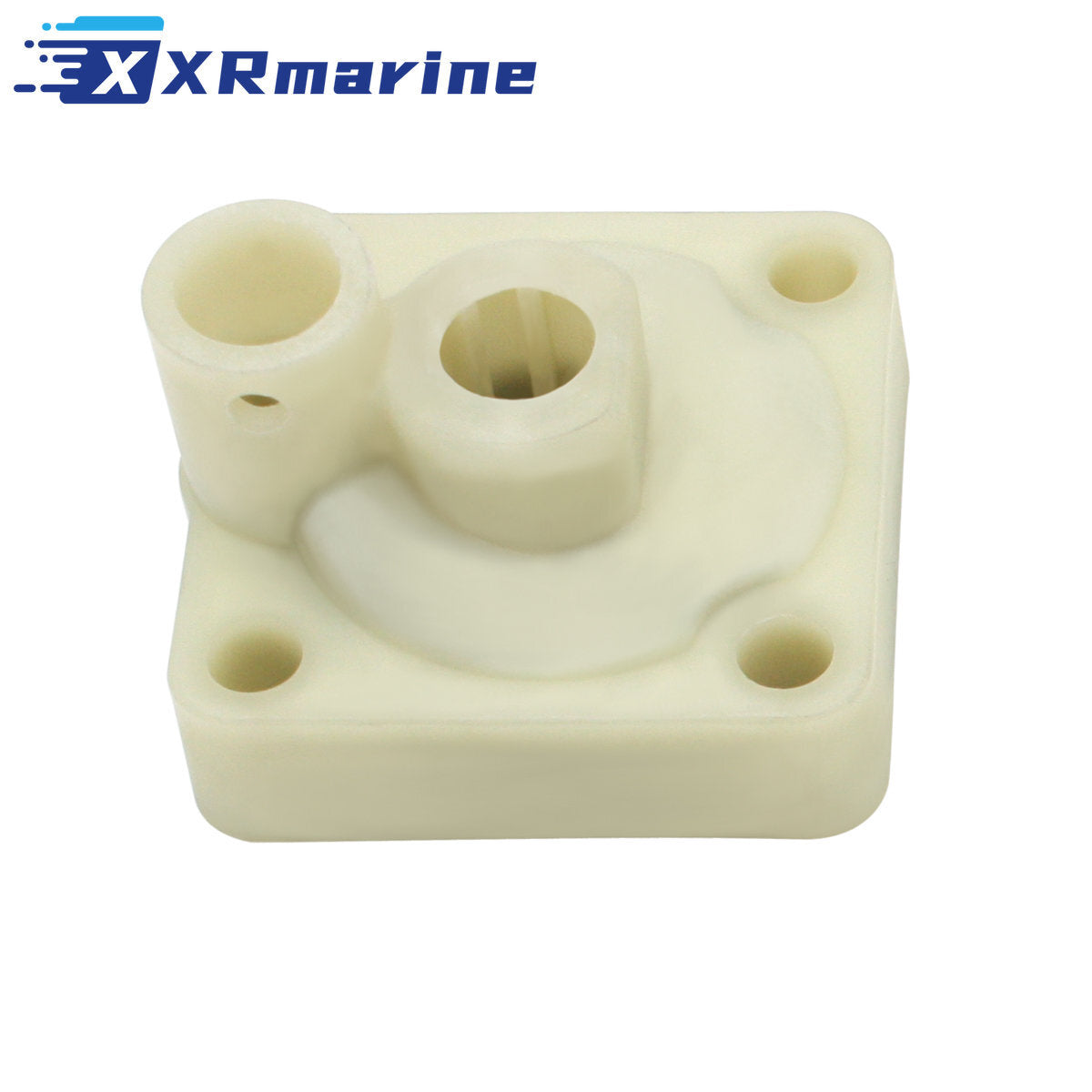

Complete water pump kit for Yamaha F15C 15 HP and F20 20 HP four-stroke outboards from 2006-2018, replacing kit 6AH-W0078-00, 6AH-W0078-01 and 6AH-W0078-02, plus Sierra 18-3479. The kit includes the impeller, two pump plates, drive pin, wear plate, pump housing, water seal damper, O-ring, dowel pins, four hex bolts, insert cup and impeller key. Rebuild the pump when the tell-tale weakens, the engine runs hot at cruise or the impeller is cracked, set or missing blades. The kit supplies every wear part needed for one complete pump service.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard Water Pump Kit |
| Engine | Yamaha F15C, F20 four-stroke |
| Years | 2006-2018 |
| Quantity | 1 complete pump kit |
| Fasteners | 4 hex bolts |
| Packaging Size | 15 x 10 x 5 cm (5.9 x 3.9 x 2.0 in) |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Yamaha | 6AH-W0078-00, 6AH-W0078-01, 6AH-W0078-02 |
| Sierra | 18-3479 |
Compatible Engines
| Brand | Model | Horsepower | Years |
|---|---|---|---|
| Yamaha | F15C | 15 HP | 2006-2018 |
| Yamaha | F20 | 20 HP | 2006-2018 |

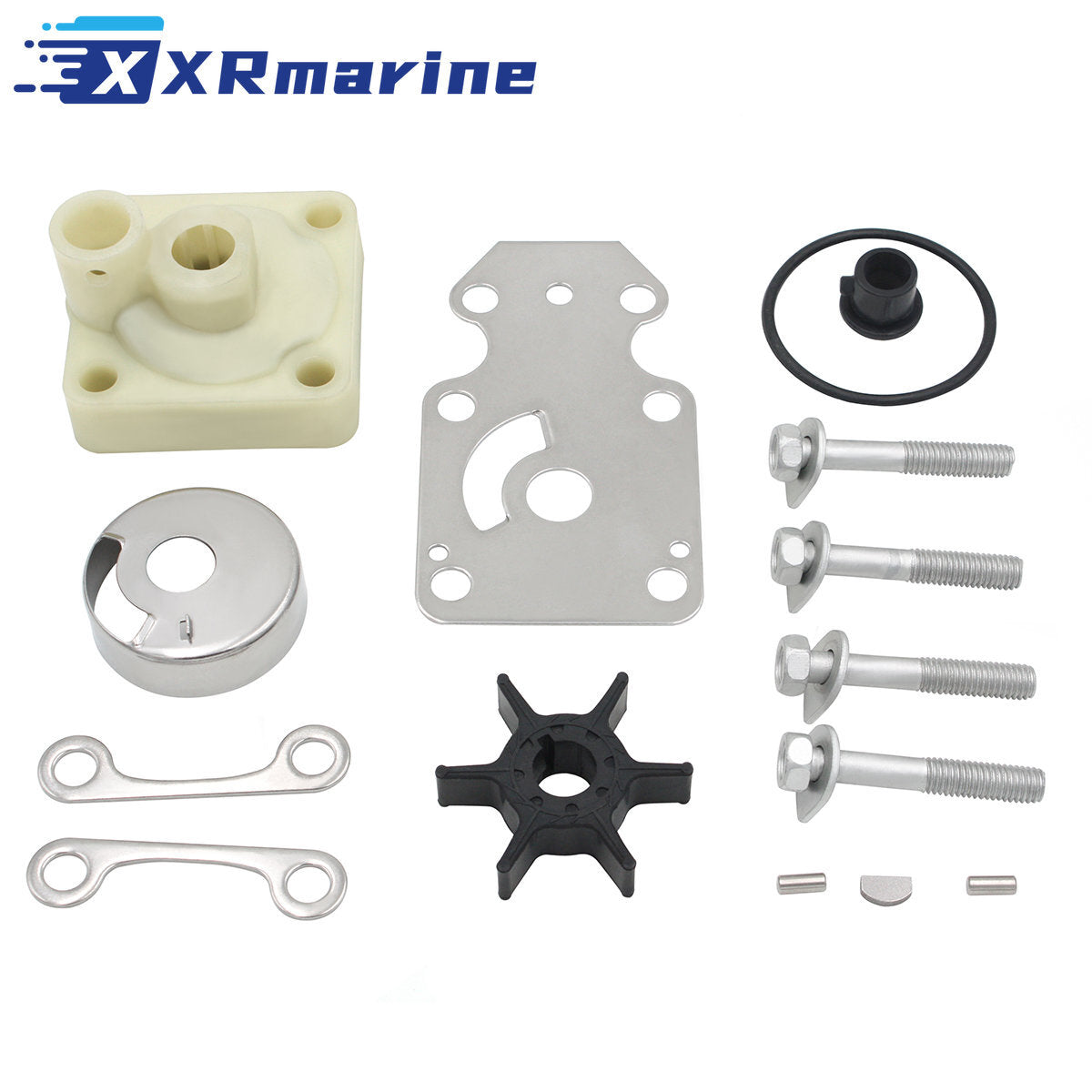

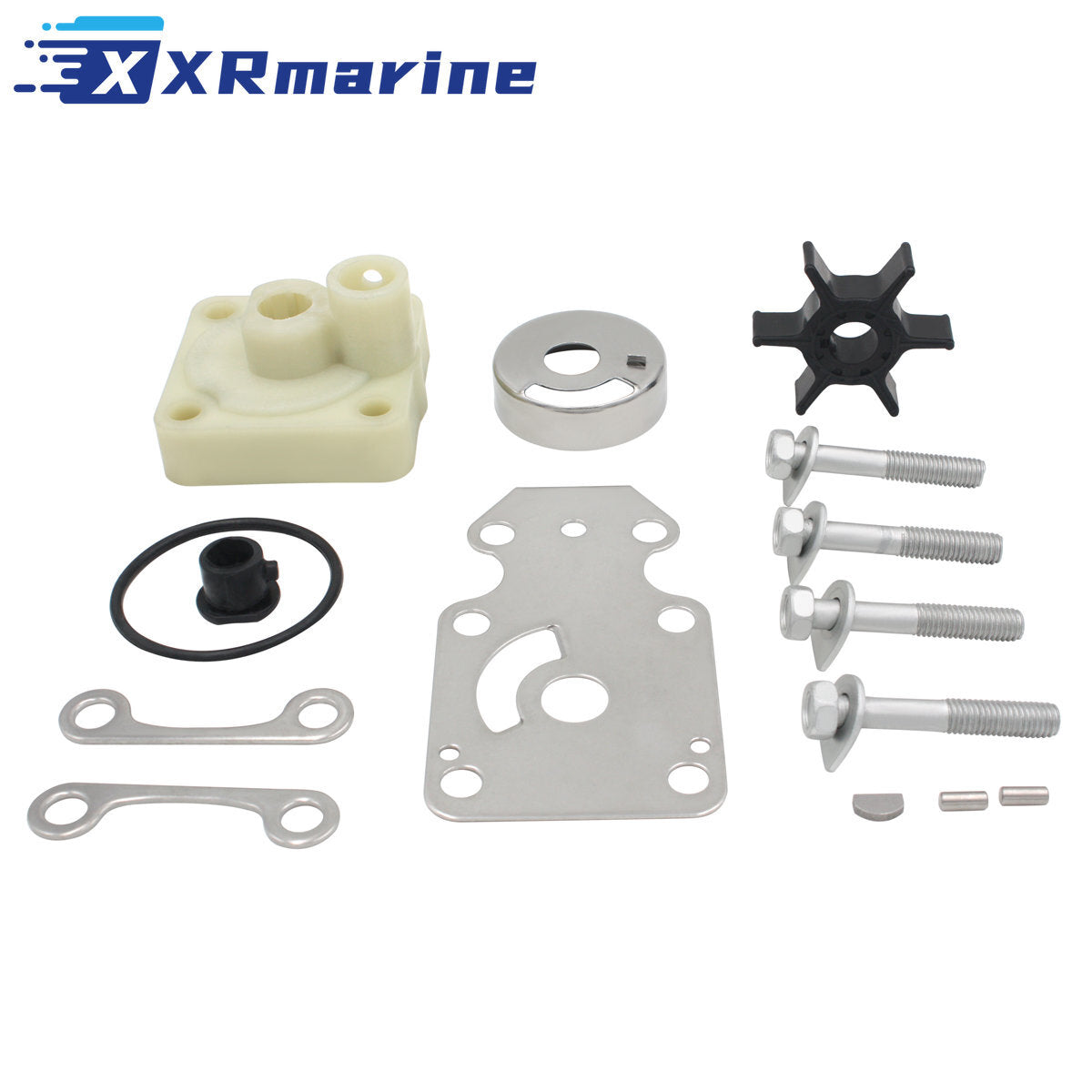

What's Included
| Component | Qty |
|---|---|
| Water Pump Impeller | 1 |
| Water Pump Plate | 2 |
| Impeller Pin Dowel | 1 |
| Wear Plate | 1 |
| Water Pump Housing | 1 |
| Water Seal Damper | 1 |
| O-Ring | 1 |
| Dowel Pin | 2 |
| Hexagon Bolt | 4 |
| Insert Cup | 1 |
| Impeller Key | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Confirm your engine is an F15C or F20 four-stroke from 2006-2018
- This is a complete pump kit, not an impeller-only listing
- Inspect the driveshaft and pump cup area while the housing is off
- Fit every O-ring, dowel and gasket in the kit to avoid a repeat strip-down
